Siemens Industrial Controls 3UB8523-5EW2 Relay

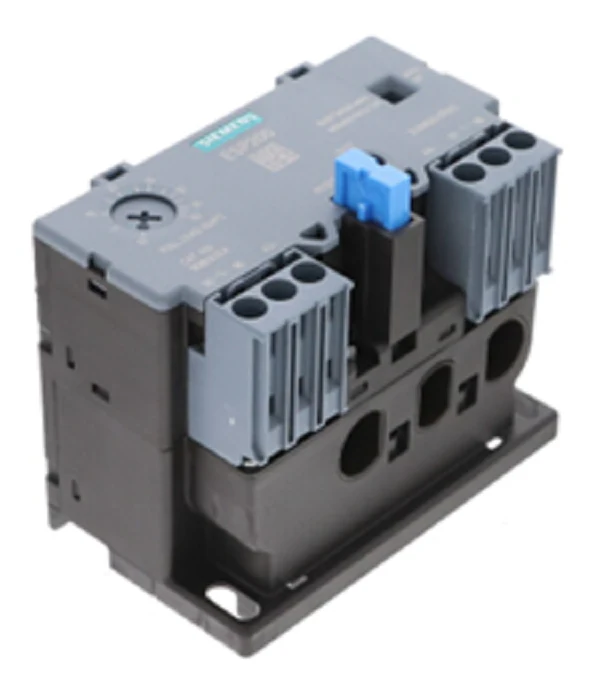

As a seasoned technician, you know that safeguarding three-phase motors requires more than just a basic breaker. The Siemens 3UB8523-5EW2 is a high-performance ESP200 solid state overload relay engineered for precise protection in demanding industrial controls environments. This unit handles a wide 10-40 amp current rating, making it a versatile choice for a variety of motor sizes without needing multiple specialized parts. Its 3-phase operation and Class 958 trip curve provide superior accuracy compared to standard bimetallic relays, adjusting specifically to the thermal requirements of your equipment to prevent nuisance tripping while ensuring a rapid response during genuine overcurrent events.
Designed for both direct mounting to contactors and stand-alone installation via screw terminals, the 3UB8523-5EW2 Siemens relay simplifies panel layouts with its A1 frame size and compact footprint. The manual and automatic reset modes offer flexibility for remote or local control strategies. By utilizing a solid-state design, this relay eliminates the variance found in mechanical components, providing a consistent industrial motor protection solution that maintains its calibration over time, even in high-vibration HVACR applications.
Key Benefits for Your Installation:- Wide Adjustment Range: The 10-40 amp dial allows for fine-tuning to the specific Full Load Amps (FLA) of your motor.
- Solid State Reliability: Enhanced accuracy over bimetallic alternatives reduces downtime caused by improper thermal modeling.
- Phase Loss Protection: Robust 3-phase overload relay logic detects phase unbalance and loss quickly to protect motor windings.
- Flexible Mounting: Compatible with Siemens ESP200 series for direct integration or din-rail/panel mounting as a standalone unit.
What is the difference between this and a standard thermal relay?
The Siemens 3UB8523-5EW2 uses electronic sensing which is far more accurate than bimetallic strips. This results in less heat generation within the relay itself and a more reliable trip curve that doesn't drift with ambient temperature changes.
Can I use this relay for single-phase applications?
While optimized for 3-phase systems, follow standard industry practice by looping the current through all three poles if applying to a single-phase load to ensure the internal phase-loss logic does not trigger a fault.
How do I set the trip class for this unit?
This specific ESP200 overload relay is pre-configured with a Class 10/20/30 selectable or fixed trip curve depending on the specific sub-model variant; always verify your motor's startup profile against the datasheet for this 3UB series industrial control component.
