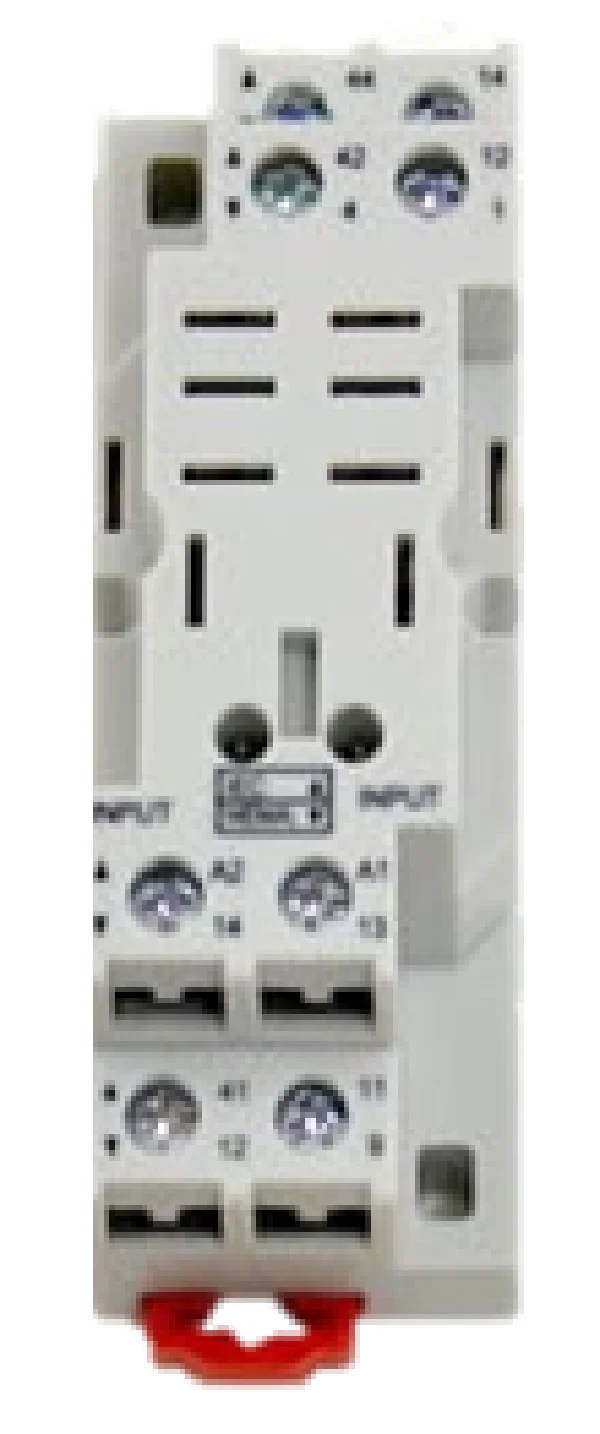

Siemens Industrial Controls 3TX7144-4E6 Base
The Siemens SIRIUS 3TX7144-4E6 is a rugged, 8-pin touch-safe relay socket engineered for industrial control panels and motor control centers. This octal base provides a secure, high-integrity interface for 3TX71 series plug-in relays, ensuring reliable electrical contact even in high-vibration HVAC and automation environments. Built with flame-retardant plastic and rated for an operating temperature range of -40°C to +85°C, this industrial control relay base is designed to withstand demanding field conditions while maintaining stable signal transmission.
For service contractors, the 3TX7144-4E6 simplifies maintenance by allowing for rapid relay replacement via its screw terminal connections, eliminating the need for terminal rewiring during a swap-out. Its compact panel-mount footprint (approximately 1.15" x 3.25") makes it an ideal choice for high-density control panel wiring where space is at a premium. As a veteran-grade 8-pin octal socket, it meets UL and CSA standards, providing a professional-grade solution for switching applications in commercial and industrial HVACR systems.
Key Benefits:- Compatible with Siemens 3TX71 series and 3TX7114 plug-in relays for seamless integration.
- Touch-safe design enhances technician safety during panel inspections and live testing.
- Robust 8-pin octal configuration ensures precise alignment and secure relay seating.
- Industrial-grade screw terminals support reliable electrical connections for long-term service.
- Compact dimensions allow for efficient use of rail space in tight automation system enclosures.
What relay series is compatible with the 3TX7144-4E6 base?
This socket is specifically engineered for use with Siemens 3TX71 series relays, including many 8-pin octal models used in industrial switching.
Does this unit support DIN rail mounting?
The 3TX7144-4E6 is primarily designed for panel mounting but can often be adapted for DIN rail configurations common in industrial control environments; check your specific enclosure layout for fitment.
How do I ensure the connection is secure?
Utilize the integrated screw terminal system. This design provides superior mechanical retention compared to spring-loaded alternatives for high-load applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
