Siemens Industrial Controls 3TX7144-1E6 Socket

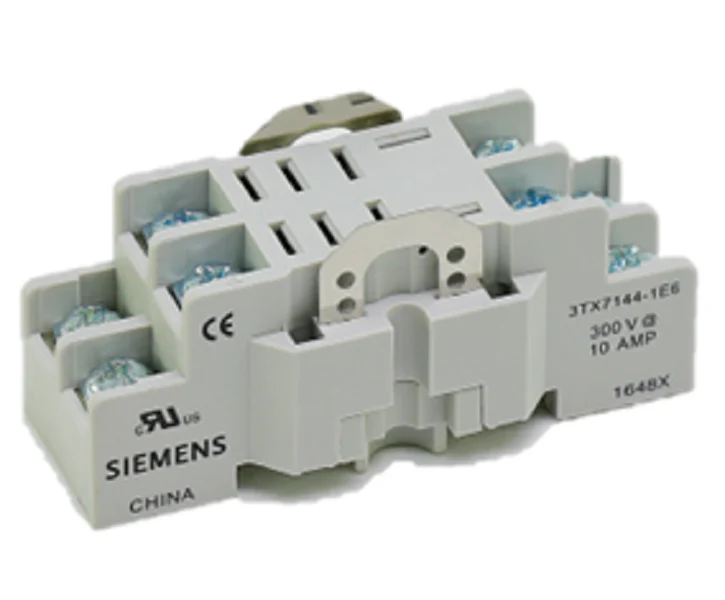

The Siemens 3TX7144-1E6 is a professional-grade 8-pin relay socket engineered for industrial control environments. Designed specifically for the 3TX71 series plug-in relays, this socket features a robust square base and screw terminal connections that facilitate secure conductor termination. The M3.5 x 0.6 yellow zinc-plated clamping screws with pressure washers ensure consistent electrical contact even in high-vibration HVACR applications. This DIN rail and panel mount socket provides flexible installation options for control cabinets and motor control centers.
Built with break-resistant, high-grade thermoplastic, the 3TX7144-1E6 is rated for 300V RMS and 10 Amps, meeting stringent UL and CSA requirements for temperature rise and electrical spacing. The terminal design accepts up to two #12 AWG wires, making it a reliable industrial control relay base for technicians requiring efficient retrofitting or new assembly. This socket ensures maximum uptime by providing a stable interface for DPDT power relays and miniature plug-in components.
Key Benefits- Dual Mounting Versatility: Direct integration with standard DIN rails or surface-mount panel configurations.
- Enhanced Terminal Security: Pressure clamp washers prevent wire strand splaying and ensure high-torque retention.
- Broad Compatibility: Native support for the full range of Siemens 3TX71 Series miniature and basic relays.
- Industrial Durability: Thermoplastic housing resists cracking and maintains dielectric integrity up to 2000V RMS.
Which wire gauge is compatible with these screw terminals?
The terminals are designed to accept two #12 AWG wires or smaller per clamp, allowing for easy daisy-chaining in control circuits.
Does this socket support the 11-pin or 14-pin 3TX71 variations?
No, this specific model is an 8-pin screw terminal socket. For higher pin counts, you must use the 3TX7144-1E3 or 3TX7144-1E5 respectively.
Are the mounting clips included with this part?
Hold-down spring clips (such as the 3TX7144-1L4 or 3TX7144-1L1) are typically ordered separately depending on the specific relay height and application requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
