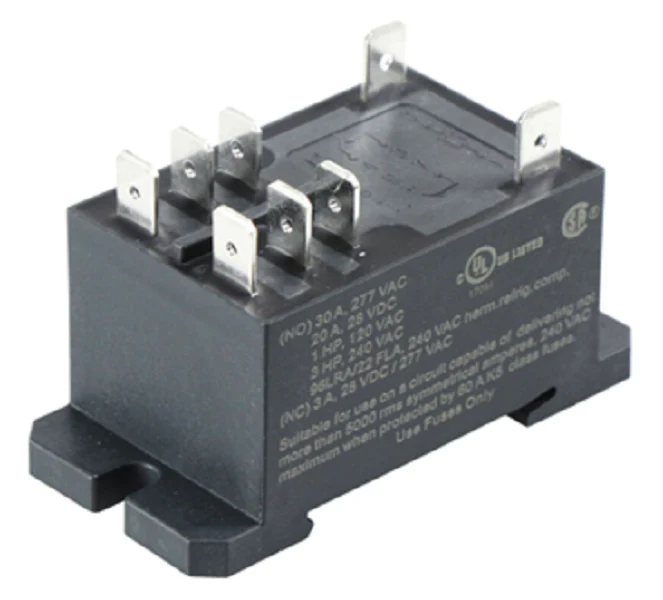

Siemens Industrial Controls 3TX7131-4DF13 Relay
The Siemens Industrial Controls 3TX7131-4DF13 is a high-capacity enclosed power relay designed for demanding commercial HVACR and industrial automation systems. This heavy-duty power relay features a DPDT (Double Pole Double Throw) contact configuration, providing versatile switching capabilities for managing multiple circuits simultaneously. Engineered for high-load applications, it supports a robust 30A current rating at 120VAC, making it a reliable solution for motor control, heating elements, and large fan assemblies. The unit is designed for flexible installation, supporting both DIN rail mount and panel mount configurations via its integrated 3-hole mounting flange. With a standard 120V AC coil, this relay integrates seamlessly into existing control circuits while its enclosed design protects internal silver alloy contacts from contaminants, ensuring consistent electrical durability up to 100,000 cycles. For technicians troubleshooting in the field, its quick-connect terminals and compact form factor simplify replacement in tight control cabinets.
Key Benefits- High-Amperage Capacity: Rated for 30A to handle substantial resistive and inductive loads without premature contact wear.
- Dual-Mount Versatility: Specialized flange design allows for direct through-panel mounting or standard DIN rail attachment, fitting various enclosure layouts.
- Heavy-Duty Reliability: Enclosed housing protects the DPDT contact mechanism from dust and debris, critical for mechanical room environments.
- Motor-Rated Performance: Suitable for primary switching of motors with ratings up to 1 HP at 120V and 3 HP at 240V.
- Streamlined Installation: Features 1/4-inch quick-connect terminals for fast, secure wiring by field contractors.
Is the 3TX7131-4DF13 compatible with 240V loads?
Yes, while the coil requires a 120VAC control signal, the DPDT contacts are rated to switch higher voltages, including 240VAC applications for motors or heaters.
Can this relay be mounted in any orientation?
This panel mount relay is designed for stable operation in vertical or horizontal orientations, provided it is securely fastened via the mounting flange or a compatible DIN rail.
Does this model include a manual test button?
The Siemens 3TX7131-4DF13 is a basic style heavy-duty relay focusing on high-current switching and does not typically feature a manual "push-to-test" button or LED indicator.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $43.86
-65%$43.86
$15.35Siemens Industrial Controls 3TX7131-4DF13 Relay
