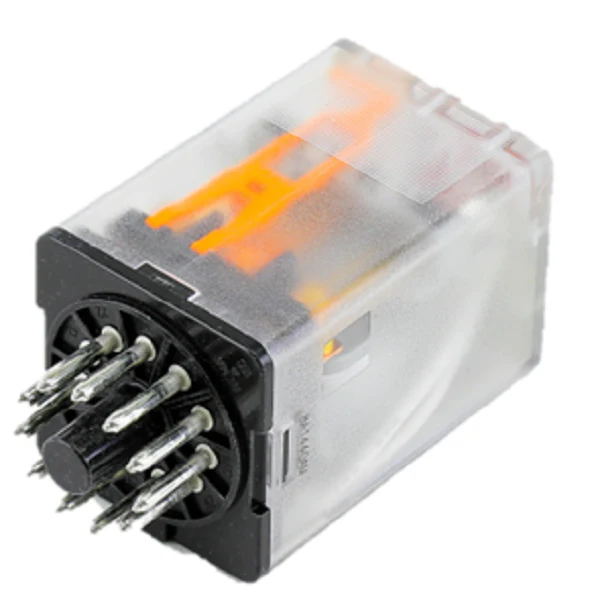

Siemens Industrial Controls 3TX7112-1NC13 Relay
The Siemens Industrial Controls 3TX7112-1NC13 is a high-performance 11-pin plug-in relay engineered for demanding industrial automation and HVACR control circuits. As a premium-tier 3PDT (3 Form C) relay, it features an octal base design for secure socket mounting and simplified field replacement. This unit operates on a 24VAC coil and is rated for 10A at 300VAC, providing robust switching capacity for motor starters, lighting loads, and complex logic sequences. Field technicians benefit from the integrated mechanical flag indicator and LED status light for immediate visual diagnostics. Additionally, the inclusion of a push-to-test button and a lock-down door allows for manual contact activation during commissioning and troubleshooting without requiring coil power. Designed for high-cycle environments, this industrial control relay ensures reliable electrical endurance and safe isolation in power relay applications.
Key Benefits- Enhanced Troubleshooting: The combination of an LED indicator, mechanical flag, and push-to-test button significantly reduces diagnostic time during system outages.
- Versatile Switching: The 3PDT contact configuration allows for simultaneous control of multiple circuits, streamlining complex wiring in control panels.
- Reliable Connection: The 11-pin octal base provides a secure, vibration-resistant interface when paired with standard 3TX7144 series sockets.
- Manual Override: A integrated lock-down door enables technicians to maintain contact state manually for circuit testing and performance verification.
What is the contact rating for the Siemens 3TX7112-1NC13?
This relay is rated for a 10A contact current at 300VAC, making it suitable for standard industrial and HVACR pilot duty or small motor loads.
Which socket is compatible with this 11-pin relay?
The 3TX7112-1NC13 is designed for use with an 11-pin octal socket, such as the Siemens 3TX7144-1E3 or 3TX7144-4E3 touch-safe models.
Does this relay support manual testing?
Yes, this premium model includes a push-to-test button and a latching lock-down door, allowing for manual activation of the 3PDT contacts without energizing the 24VAC coil.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $45.26
-65%$45.26
$15.84Siemens Industrial Controls 3TX7112-1NC13 Relay
