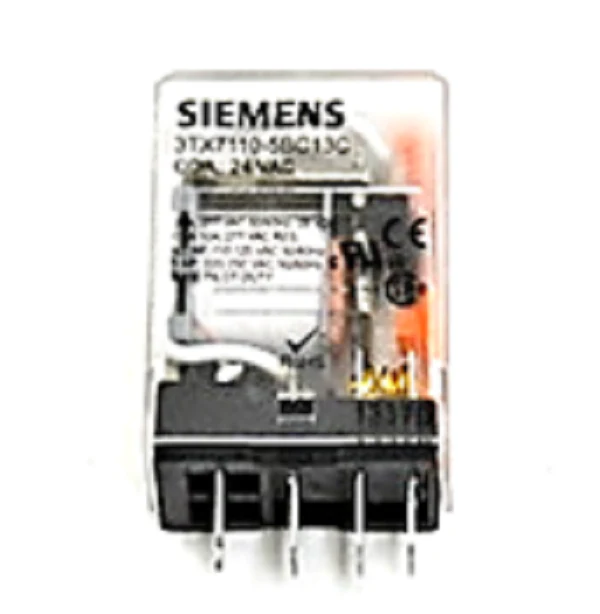

Siemens Industrial Controls 3TX7110-5BC13C Relay
The Siemens 3TX7110-5BC13C Relay is a rugged, compact SIRIUS socket relay engineered for reliable switching in HVACR control circuits and industrial automation. This SPDT relay features a 24VAC coil and is capable of handling significant loads, with a 20A contact rating at 120/240VAC and 28VDC, making it ideal for managing compressors, fans, and resistive heating elements. Designed for efficiency, this miniature plug-in relay utilizes a 5-pin square base configuration, ensuring a secure interface with compatible 3TX7144-4E7 sockets. Its IP40 enclosure provides protection against dust ingress in sensitive control panels, while the mechanical flag indicator offers immediate visual confirmation of contact status during field diagnostics. Expertly crafted for longevity, it operates within a broad temperature range from -40 to 55 °C, ensuring stable electrical performance in demanding mechanical environments.
Key Benefits
- High Amperage Capacity: Rated for up to 20 Amps, providing robust switching for inductive and resistive loads.
- Streamlined Troubleshooting: The integrated mechanical flag indicator allows technicians to verify relay state at a glance.
- Space-Saving Design: The narrow square base profile maximizes rail space in crowded electrical enclosures.
- Secure Connectivity: 5-pin plug-in termination eliminates wiring errors and simplifies field replacement.
- Industrial Durability: Built to SIRIUS technical standards for reliable operation in high-cycle HVACR applications.
Common Questions
What is the correct socket for the Siemens 3TX7110-5BC13C?
This relay is designed to plug directly into the 3TX7144-4E7 socket for DIN rail or panel mounting.
Can this relay be used with DC control circuits?
No, the 3TX7110-5BC13C is specifically equipped with a 24VAC coil. For DC applications, a corresponding 24VDC model must be selected.
Is this relay suitable for motor loads?
Yes, the 20A contact rating provides sufficient overhead for small motors and fractional horsepower HVACR components, provided the inrush current does not exceed rated specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
