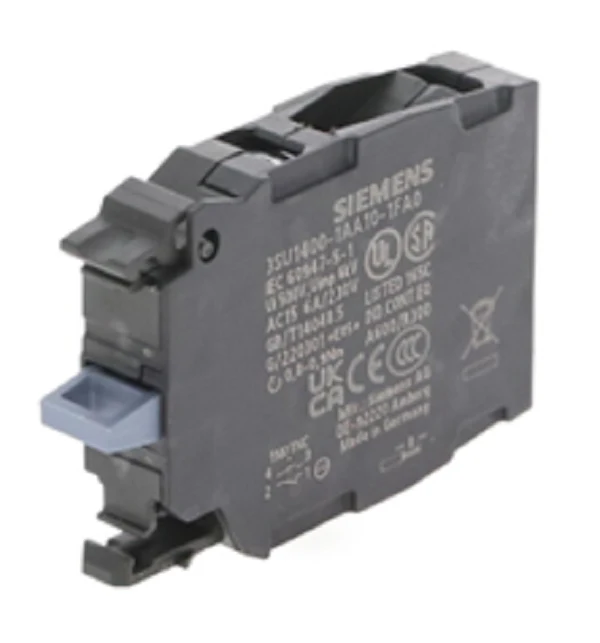

Siemens Industrial Controls 3SU1400-1AA10-1FA0 Control Module
The Siemens 3SU1400-1AA10-1FA0 Control Module is a high-reliability SIRIUS ACT contact module designed for front plate mounting in demanding industrial and HVACR environments. This 1NO+1NC contact block provides a bridge between pilot devices and control circuits, featuring a robust screw terminal connection system that ensures secure high-vibration resistance. As a veteran-grade auxiliary contact module, it supports an operating voltage of up to 500V AC/DC and a 10A thermal current, making it ideal for integration into motor control centers or complex signaling arrays. The positively driven NC contact design complies with IEC 60947-5-1 standards, ensuring safety-related performance for emergency stop and interlocking applications. This non-illuminated 3SU1 module is engineered for long-term mechanical durability, rated for 10 million switching cycles, and maintains IP20 protection at the terminals for safe handling during 22mm panel installation.
Key Benefits for HVACR Technicians:- Dual Contact Configuration: Includes one normally open (NO) and one normally closed (NC) contact element for versatile circuit logic in a single 3SU14001AA101FA0 footprint.
- Industrial Durability: Provides high vibration and shock resistance, meeting railway application standards for reliable operation in extreme mechanical conditions.
- Simple Snap-On Installation: Features a one-handed, tool-free mounting concept that attaches firmly to the SIRIUS ACT holder without additional hardware.
- High Signal Integrity: Silver alloy contacts provide exceptional reliability even with low voltages and currents (5V/1mA), preventing signal failure in electronic control systems.
- Safety Compliance: Positive opening functionality on the NC contact ensures circuit interruption even if contacts weld, vital for safety-critical hardware.
Is the Siemens 3SU1400-1AA10-1FA0 compatible with plastic and metal holders?
Yes, this contact module is part of the modular SIRIUS ACT system and is designed to snap directly into both plastic and metal holders for front plate mounting.
What is the maximum wire size for the screw terminals?
The screw terminals are designed to accommodate solid or stranded conductors with core end processing, typically supporting cross-sections up to 2 x 1.5mm² or 1 x 2.5mm².
Can this module be used in an enclosure for outdoor HVAC units?
This module is rated IP40 for the enclosure and IP20 for the terminals. While the SIRIUS ACT actuators themselves offer higher IP ratings for external exposure, this internal module should be housed within an appropriate NEMA or IP-rated enclosure for outdoor applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
