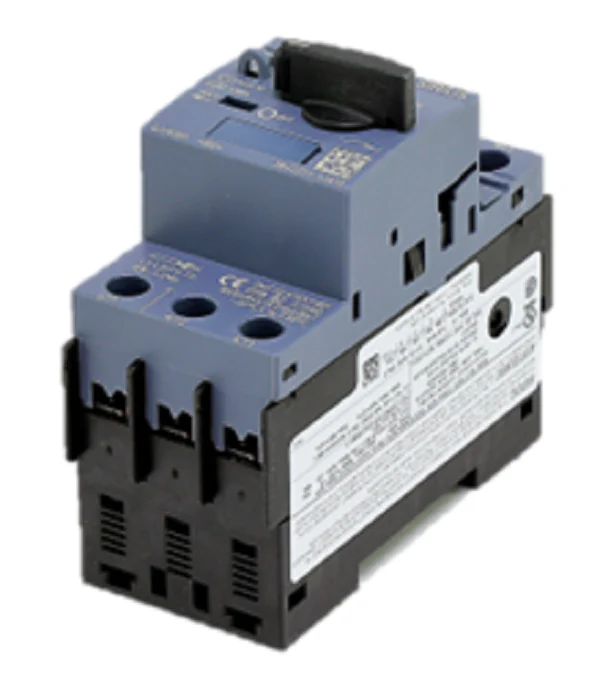

Siemens Industrial Controls 3RV2011-1JA10 Breaker
The Siemens 3RV2011-1JA10 is a high-performance SIRIUS motor starter protector designed for precise motor protection in industrial HVACR and control environments. Built on the S00 frame size, this 3-pole circuit breaker features a thermal-magnetic trip mechanism with an adjustable amperage setting from 7 to 10 Amps. It is optimized for use as a manual motor controller and is UL-approved for Type E self-protected combination motor controller applications, allowing it to be installed downstream of fuses to provide comprehensive branch circuit protection. The unit utilizes screw terminals for secure conductor termination and is designed for standard 35mm DIN rail mounting, ensuring a compact footprint in congested control cabinets.
This motor protection circuit breaker is engineered for high operational reliability, featuring a Class 10 trip characteristic that ensures rapid disconnection in the event of an overload. With a rated operating voltage of 690V AC and an interrupt rating of 6 kA at maximum voltage, the 3RV2011-1JA10 provides robust short-circuit protection and phase loss sensitivity. Its current-limiting design minimizes energy let-through, reducing thermal stress on downstream components. Compatibility with 3RT2 contactors allows for the assembly of space-saving load feeders, making it a staple for contractors maintaining 3-phase motor systems up to 4kW at 400V.
Key Benefits- Versatile Protection: Integrates short-circuit protection, overload protection, and disconnect functions into a single 45mm wide device.
- Enhanced Efficiency: Optimized bimetal trip units reduce power loss and heat generation within the enclosure.
- Global Compliance: Meets UL, CSA, CE, and IEC standards, suitable for international 690V AC systems and IT networks.
- Rugged Durability: Mechanical and electrical service life of 100,000 switching cycles for long-term field performance.
- Flexible Installation: Supports auxiliary switch extensions and features a finger-safe IP20 protection rating for increased safety.
Is the 3RV2011-1JA10 phase-loss sensitive?
Yes, this Siemens motor starter protector includes built-in phase failure recognition to protect 3-phase motors from damage due to unbalanced loads or single-phasing.
What is the maximum wire size for those screw terminals?
The terminal blocks are designed to accept two 18 to 14 AWG conductors or a single 12 AWG wire per terminal, ensuring a robust connection for high-vibration HVACR motors.
Can this breaker be used for transformer protection?
While designed primarily for motor protection, Siemens offers specific variants for transformer protection. This model is specifically optimized for motor starter protector applications with Class 10 trip requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
