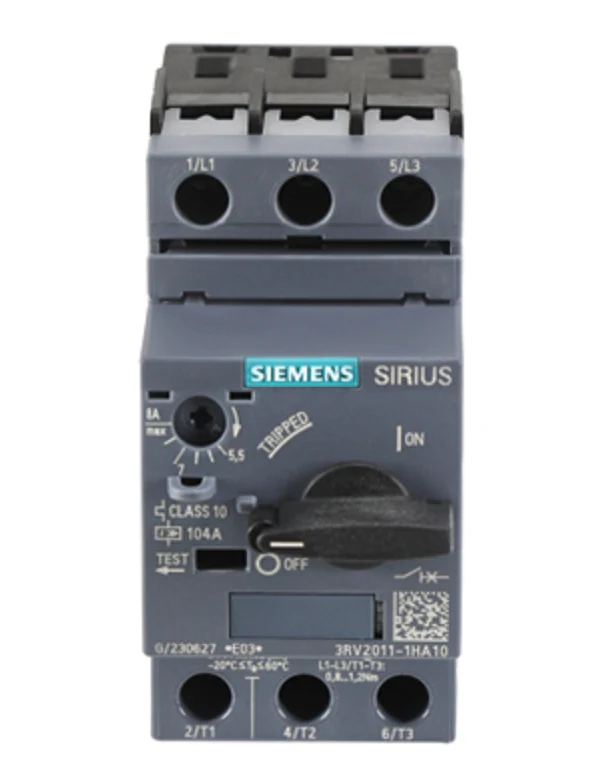

Siemens Industrial Controls 3RV2011-1HA10 Starter
The Siemens 3RV2011-1HA10 is a high-performance SIRIUS motor starter protector designed for precise motor protection in industrial HVACR and control applications. Engineered for Size S00 mounting, this thermal-magnetic circuit breaker features an adjustable current response range of 5.5 to 8 Amps, making it ideal for protecting IE3 and IE4 efficiency class motors against overloads and short circuits. It delivers a CLASS 10 trip characteristic, ensuring rapid response during phase failure or disturbance while maintaining a standard switching capacity of 50 kA at 400V. With a compact 45mm width and screw connections, this Siemens 3RV2 manual motor starter integrates seamlessly with 3RT2 contactors for a complete combination starter assembly. The rotary actuator provides clear indication of ON, OFF, and TRIPPED states, enhancing safety and troubleshooting efficiency on the job site.
- Adjustable Overload Release: Precision-tuned dial allows for 5.5 to 8 Amp full-load amperage (FLA) settings to match specific motor nameplates.
- Short-Circuit Protection: Integrated magnetic trip element with a fixed response value of 104A protects against high-fault currents.
- Phase Failure Sensitivity: Advanced sensing technology detects single-phase conditions to prevent catastrophic motor winding burnout.
- Rugged Design: Finger-safe IP20 terminals and climate-resistant housing suitable for ambient temperatures from -20°C up to +60°C.
- SIRIUS Modular System: Directly compatible with 3RV29 infeed systems and lateral or transverse auxiliary switches for remote signaling.
Common Questions
What is the maximum voltage rating for the 3RV2011-1HA10?
This device is rated for an operational voltage of up to 690V AC, supporting both 480V and 600V industrial power systems.
Can this be used as a UL Type E self-protected combination starter?
Yes, when paired with the required 3RV29 terminal adapter, the 3RV2011-1HA10 is UL approved as a Type E self-protected motor controller, serving as the disconnect, short-circuit protection, and motor controller in one unit.
Is this unit compatible with older 3RV1 series accessories?
No, the 3RV2 series is designed specifically for use with the SIRIUS Innovations platform; use only 3RT2 contactors and 3RV29 accessories to ensure proper mechanical and electrical fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Industrial Controls 3RV2011-1HA10 Starter
The Siemens 3RV2011-1HA10 is a high-performance SIRIUS motor starter protector designed for precise motor protection in industrial HVACR and control applications. Engineered for Size S00 mounting, this thermal-magnetic circuit breaker features an adjustable current response range of 5.5 to 8 Amps, making it ideal for protecting IE3 and IE4 efficiency class motors against overloads and short circuits. It delivers a CLASS 10 trip characteristic, ensuring rapid response during phase failure or disturbance while maintaining a standard switching capacity of 50 kA at 400V. With a compact 45mm width and screw connections, this Siemens 3RV2 manual motor starter integrates seamlessly with 3RT2 contactors for a complete combination starter assembly. The rotary actuator provides clear indication of ON, OFF, and TRIPPED states, enhancing safety and troubleshooting efficiency on the job site.
- Adjustable Overload Release: Precision-tuned dial allows for 5.5 to 8 Amp full-load amperage (FLA) settings to match specific motor nameplates.
- Short-Circuit Protection: Integrated magnetic trip element with a fixed response value of 104A protects against high-fault currents.
- Phase Failure Sensitivity: Advanced sensing technology detects single-phase conditions to prevent catastrophic motor winding burnout.
- Rugged Design: Finger-safe IP20 terminals and climate-resistant housing suitable for ambient temperatures from -20°C up to +60°C.
- SIRIUS Modular System: Directly compatible with 3RV29 infeed systems and lateral or transverse auxiliary switches for remote signaling.
Common Questions
What is the maximum voltage rating for the 3RV2011-1HA10?
This device is rated for an operational voltage of up to 690V AC, supporting both 480V and 600V industrial power systems.
Can this be used as a UL Type E self-protected combination starter?
Yes, when paired with the required 3RV29 terminal adapter, the 3RV2011-1HA10 is UL approved as a Type E self-protected motor controller, serving as the disconnect, short-circuit protection, and motor controller in one unit.
Is this unit compatible with older 3RV1 series accessories?
No, the 3RV2 series is designed specifically for use with the SIRIUS Innovations platform; use only 3RT2 contactors and 3RV29 accessories to ensure proper mechanical and electrical fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
