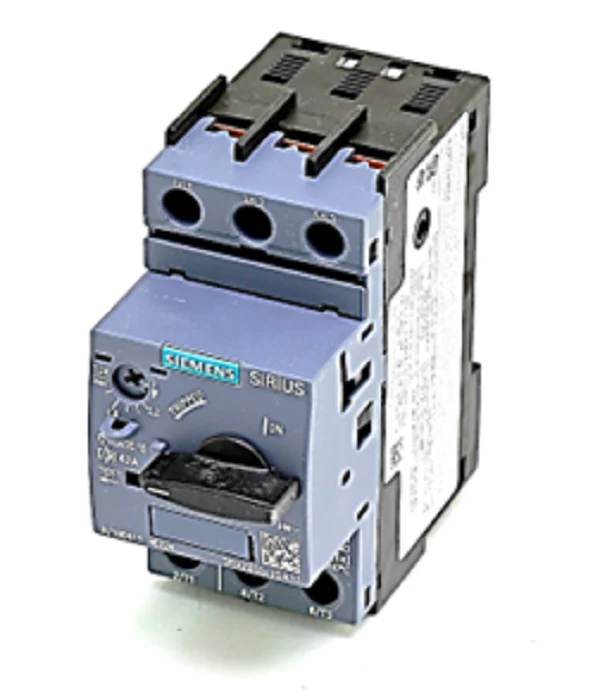

Siemens Industrial Controls 3RV2011-1DA10 Breaker
The Siemens SIRIUS 3RV2011-1DA10 is a high-performance motor starter protector engineered for precision in industrial load feeders. This S00 size manual motor starter provides reliable motor protection through a combination of thermal overload and magnetic short-circuit tripping mechanisms. With an adjustable setting range of 2.2 to 3.2 Amps and Class 10 trip characteristics, it ensures motors are shielded from damage during consistent overcurrent events or phase failures. Designed for seamless integration, this 3-pole circuit breaker features screw terminals for secure electrical connections and a standard 35mm DIN rail mount, making it a staple for control cabinet builds. Its current-limiting design supports a high short-circuit breaking capacity of up to 100 kA at 400V, providing robust protection for downstream components. This unit is fully compatible with Siemens 3RT2 contactors, allowing contractors to construct compact and efficient SIRIUS innovation motor feeders that meet stringent global standards.
Key Benefits
- Optimized Protection: Features an adjustable 2.2-3.2A thermal overload release and a 42A fixed instantaneous magnetic trip for comprehensive short-circuit protection.
- Industrial Durability: Offers a mechanical and electrical service life of 100,000 operating cycles, ensuring long-term reliability in demanding HVACR and industrial environments.
- Efficient Design: Optimized bimetal trip units minimize power loss, reducing heat generation within the control cabinet and allowing for smaller cooling requirements.
- Versatile Compatibility: Suitable for use in IT systems and approved as a self-protected combination motor controller (Type E) when used within its rated parameters.
Common Questions
What is the maximum operating voltage for the 3RV2011-1DA10?
This breaker is rated for a maximum operating voltage of 690V AC, providing flexibility across various industrial power grids.
Can I add auxiliary switches to this motor starter protector?
Yes, the 3RV2 series supports front and side-mount auxiliary switches (such as the 3RV29 series) to provide remote signaling and status monitoring.
Does this unit provide protection against phase failure?
Yes, the Siemens 3RV2011-1DA10 includes integrated phase disturbance recognition to prevent motor damage during unbalanced load conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
