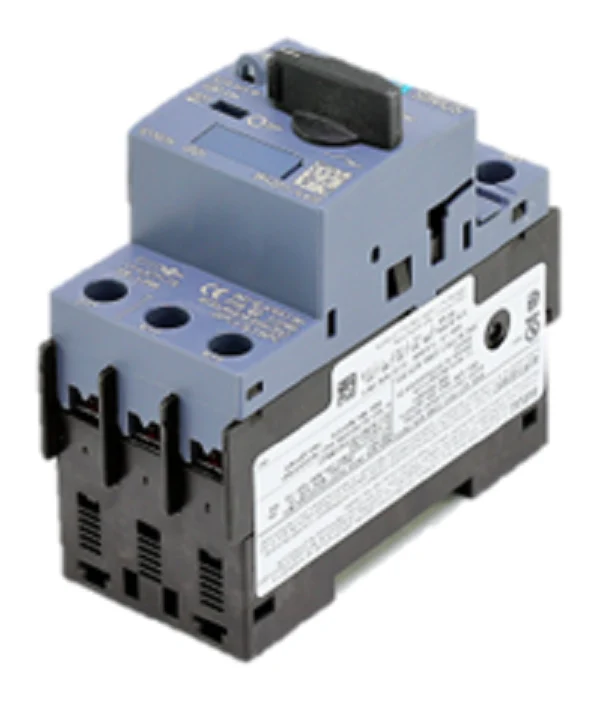

Siemens Industrial Controls 3RV2011-1CA10 Circuit Breaker
The Siemens SIRIUS 3RV2011-1CA10 is a high-performance motor starter protector and circuit breaker engineered for precise thermal and magnetic protection of three-phase motors. Specifically designed as a Size S00 unit with screw connection, this manual motor protector offers an adjustable thermal overload setting of 1.8-2.5A and an instantaneous magnetic trip release at 33A. Rated for an operational voltage of up to 690V AC, the 3RV2011-1CA10 ensures robust short-circuit protection and phase disturbance recognition within complex HVACR control systems. Utilizing advanced Bi-Metal technology to minimize power loss, this compact unit helps reduce heat build-up inside control cabinets, allowing for more efficient operation of 3-pole industrial motor loads. This unit is compliant with Class 10 trip characteristics, making it an essential component for technicians requiring reliable DIN rail mounted protection in restricted installation spaces.
Key Benefits- Compact S00 Frame: Optimized for limited cabinet space while maintaining standard switching capacity of 100kA at 400V.
- Enhanced Efficiency: Minimal bimetal power loss reduces the thermal load on control enclosures and cooling systems.
- Versatile Application: Suitable for use in IT systems and international power networks with 50/60 Hz frequency support.
- System Compatibility: Seamlessly integrates with 3RT2 contactors and 3RV29 infeed systems for complete motor feeder solutions.
- Operational Safety: Features a rotary actuator for clear visual status of ON, OFF, and TRIPPED positions to prevent maintenance errors.
Is the 3RV2011-1CA10 suitable for phase failure protection?
Yes, this circuit breaker sz S00 includes built-in phase disturbance recognition to detect unbalanced loads and protect motors from overheating due to phase loss.
What is the maximum torque for the screw terminals?
The standard screw connection terminals are designed for a tightening torque of 0.8 to 1.2 Nm, compatible with 18 to 14 AWG wiring commonly found in HVACR panel builds.
Does this unit require additional modules for auxiliary signaling?
While the base model does not include internal auxiliary switches, it is fully compatible with 3RV2901 transverse or lateral auxiliary contacts for remote status signaling and safety interlocking.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
