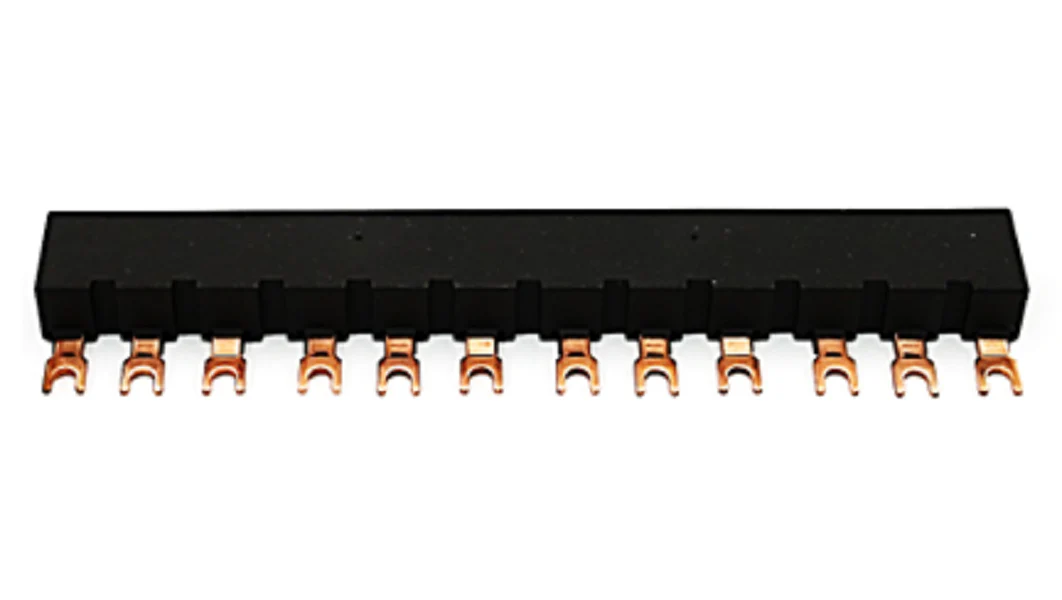

Siemens Industrial Controls 3RV1915-1CB Feeder
The Siemens 3RV1915-1CB is a high-performance 3-phase busbar designed for professionals looking to streamline power distribution across multiple SIRIUS motor starter protectors. This 45mm modular spacing feeder allows for the simultaneous connection of up to four 3RV20 circuit breakers or motor starters in sizes S00 and S0, significantly reducing wiring complexity in the control cabinet. Engineered with a 63A current rating and a 690V insulation voltage, this line-side feeder ensures a reliable, finger-safe connection (IP20 rated) that meets rigorous industrial safety standards. The fork-type connection terminals facilitate rapid installation on standard DIN rails, providing a clean and organized layout that withstands high short-circuit stress environments. For contractors managing larger arrays, these MSP feeder terminals can be extended by rotating and clamping additional busbars to the final protector, maintaining a continuous, high-conductivity power path without the need for additional distribution blocks.
Key Benefits- Compatible with Siemens SIRIUS S00 and S0 frame sizes for versatile motor control centers.
- Supports up to four circuit breakers with a precise 45mm pitch to maximize panel space efficiency.
- Robust 63A rated operational current at 690V for demanding HVACR and industrial applications.
- Features integrated touch protection to ensure technician safety during maintenance.
- Simplified installation via screw terminals, reducing point-to-point wiring labor and potential failure points.
Is the 3RV1915-1CB compatible with 3RV11 motor starter protectors?
No, this specific busbar system is generally not suitable for 3RV11 protectors with overload relay functions; it is designed for use with 3RV1 and 3RV2 motor starter protectors using standard screw terminals.
Can I combine different frame sizes on the same busbar?
Yes, you can mix S00 and S0 size SIRIUS protectors on the 3RV1915-1CB, provided they all utilize the 45mm modular spacing and screw terminal configuration.
How do I extend the busbar for more than four units?
You can extend the system by taking a second busbar, rotating it 180 degrees, and clamping its tags underneath the terminals of the last protector on the first busbar.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $44.99
-65%$44.99
$15.75Siemens Industrial Controls 3RV1915-1CB Feeder
The Siemens 3RV1915-1CB is a high-performance 3-phase busbar designed for professionals looking to streamline power distribution across multiple SIRIUS motor starter protectors. This 45mm modular spacing feeder allows for the simultaneous connection of up to four 3RV20 circuit breakers or motor starters in sizes S00 and S0, significantly reducing wiring complexity in the control cabinet. Engineered with a 63A current rating and a 690V insulation voltage, this line-side feeder ensures a reliable, finger-safe connection (IP20 rated) that meets rigorous industrial safety standards. The fork-type connection terminals facilitate rapid installation on standard DIN rails, providing a clean and organized layout that withstands high short-circuit stress environments. For contractors managing larger arrays, these MSP feeder terminals can be extended by rotating and clamping additional busbars to the final protector, maintaining a continuous, high-conductivity power path without the need for additional distribution blocks.
Key Benefits- Compatible with Siemens SIRIUS S00 and S0 frame sizes for versatile motor control centers.
- Supports up to four circuit breakers with a precise 45mm pitch to maximize panel space efficiency.
- Robust 63A rated operational current at 690V for demanding HVACR and industrial applications.
- Features integrated touch protection to ensure technician safety during maintenance.
- Simplified installation via screw terminals, reducing point-to-point wiring labor and potential failure points.
Is the 3RV1915-1CB compatible with 3RV11 motor starter protectors?
No, this specific busbar system is generally not suitable for 3RV11 protectors with overload relay functions; it is designed for use with 3RV1 and 3RV2 motor starter protectors using standard screw terminals.
Can I combine different frame sizes on the same busbar?
Yes, you can mix S00 and S0 size SIRIUS protectors on the 3RV1915-1CB, provided they all utilize the 45mm modular spacing and screw terminal configuration.
How do I extend the busbar for more than four units?
You can extend the system by taking a second busbar, rotating it 180 degrees, and clamping its tags underneath the terminals of the last protector on the first busbar.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
