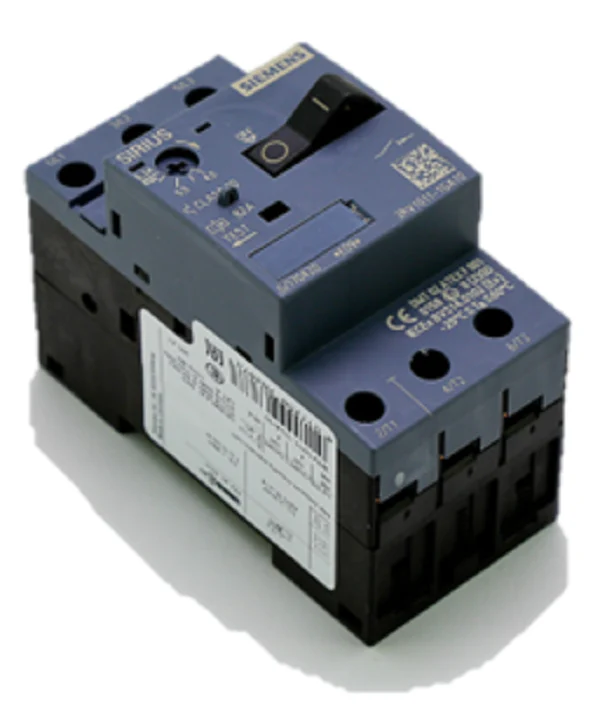

Siemens Industrial Controls 3RV1011-1GA10 Protector
The Siemens 3RV1011-1GA10 Protector is a heavy-duty SIRIUS S00 frame motor starter protector engineered for precision control and circuit safety in demanding HVACR and industrial environments. This 3-pole thermal-magnetic circuit breaker features an adjustable current setting range of 4.5 to 6.3A, providing essential overload and short-circuit protection for IE3/IE4 motors. Designed with a Class 10 trip characteristic, it ensures reliable disconnection during overcurrent events, while the built-in phase loss sensitivity prevents motor burnout during unbalanced power conditions. The screw terminal design and 35mm DIN rail mounting compatibility allow for seamless integration into compact control panels. With a high short-circuit breaking capacity of up to 100 kA at 400V, this manual motor starter serves as a robust foundation for group installations or individual load feeders, maintaining system integrity under peak operational stress.
Key Benefits for HVACR Applications- Adjustable Thermal Overload: Dial-in the exact 4.5A to 6.3A FLA for precise motor matching.
- Enhanced Phase Protection: Integrated differential trip bar detects phase failure to protect expensive 3-phase compressor motors.
- Space-Efficient Design: The 45mm width S00 frame maximizes rail space in crowded service cabinets.
- Rugged Durability: Rated for up to 100,000 switching cycles to handle frequent cycling in automated systems.
- Global Standards Compliance: CE, UL, and CSA certifications ensure the 3RV1011-1GA10 meets stringent code requirements.
How do I set the correct amperage on the Siemens 3RV1011-1GA10?
Use the front-facing rotary dial to align the pointer with the Full Load Amps (FLA) listed on your motor’s nameplate. Ensure the setting remains within the 4.5A to 6.3A window for optimal thermal overload protection.
Is this unit compatible with auxiliary switches?
Yes, the Siemens SIRIUS 3RV1 series supports modular expansion. Lateral or transverse auxiliary switches can be added to provide signaling to a controller or to trigger external alarms during a trip event.
Can the 3RV1011-1GA10 be used for DC motor protection?
While primarily used for AC applications, these protectors utilize bimetallic heating elements compatible with DC loads, provided all three poles are wired in series to ensure proper magnetic trip functionality.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $214.47
-65%$214.47
$75.06Siemens Industrial Controls 3RV1011-1GA10 Protector
The Siemens 3RV1011-1GA10 Protector is a heavy-duty SIRIUS S00 frame motor starter protector engineered for precision control and circuit safety in demanding HVACR and industrial environments. This 3-pole thermal-magnetic circuit breaker features an adjustable current setting range of 4.5 to 6.3A, providing essential overload and short-circuit protection for IE3/IE4 motors. Designed with a Class 10 trip characteristic, it ensures reliable disconnection during overcurrent events, while the built-in phase loss sensitivity prevents motor burnout during unbalanced power conditions. The screw terminal design and 35mm DIN rail mounting compatibility allow for seamless integration into compact control panels. With a high short-circuit breaking capacity of up to 100 kA at 400V, this manual motor starter serves as a robust foundation for group installations or individual load feeders, maintaining system integrity under peak operational stress.
Key Benefits for HVACR Applications- Adjustable Thermal Overload: Dial-in the exact 4.5A to 6.3A FLA for precise motor matching.
- Enhanced Phase Protection: Integrated differential trip bar detects phase failure to protect expensive 3-phase compressor motors.
- Space-Efficient Design: The 45mm width S00 frame maximizes rail space in crowded service cabinets.
- Rugged Durability: Rated for up to 100,000 switching cycles to handle frequent cycling in automated systems.
- Global Standards Compliance: CE, UL, and CSA certifications ensure the 3RV1011-1GA10 meets stringent code requirements.
How do I set the correct amperage on the Siemens 3RV1011-1GA10?
Use the front-facing rotary dial to align the pointer with the Full Load Amps (FLA) listed on your motor’s nameplate. Ensure the setting remains within the 4.5A to 6.3A window for optimal thermal overload protection.
Is this unit compatible with auxiliary switches?
Yes, the Siemens SIRIUS 3RV1 series supports modular expansion. Lateral or transverse auxiliary switches can be added to provide signaling to a controller or to trigger external alarms during a trip event.
Can the 3RV1011-1GA10 be used for DC motor protection?
While primarily used for AC applications, these protectors utilize bimetallic heating elements compatible with DC loads, provided all three poles are wired in series to ensure proper magnetic trip functionality.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
