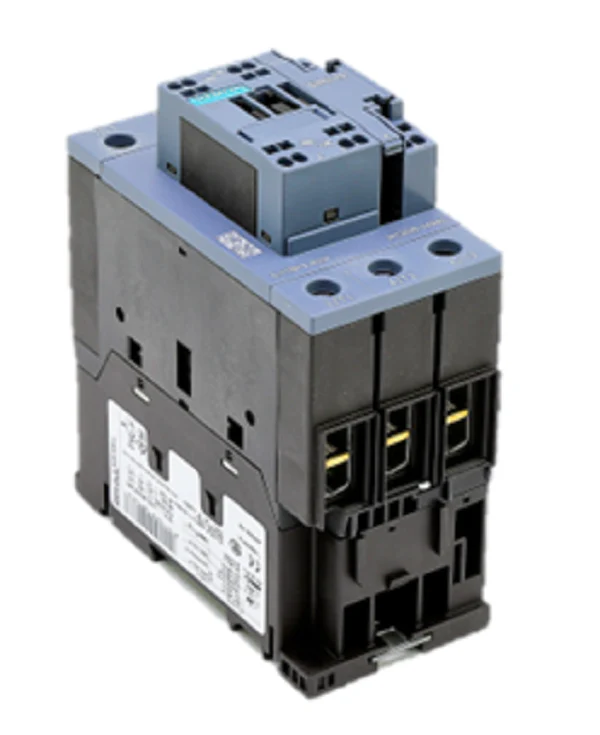

Siemens Industrial Controls 3RT2035-3AK60 Contactor
The Siemens 3RT2035-3AK60 SIRIUS Contactor is a heavy-duty, 3-pole switching solution designed for high-cycling industrial applications. Engineered within the SIRIUS Modular System, this Size S2 contactor provides a reliable interface for controlling three-phase motors and resistive loads. It features a high 40A-41A operational current (AC-3) and is rated for motor power up to 18.5 kW at 400V. This specific model is equipped with a 120V AC coil (60Hz), making it compatible with standard North American control circuits. Unlike standard screw-only models, the 3RT2035-3AK60 utilizes spring-type terminals for the control and auxiliary circuits, ensuring vibration-proof connections and reduced maintenance in high-vibration environments. With 1 NO and 1 NC integrated auxiliary contacts, it allows for immediate signaling and interlocking without additional blocks. Its IP20 finger-safe design and 6 kV surge voltage resistance ensure robust performance during voltage spikes and harsh operating conditions.
Key Benefits- Vibration-Proof Termination: Equipped with spring-loaded terminals for auxiliary and control circuits to maintain contact integrity in high-vibration machinery.
- High Switching Capacity: Supports 40A/41A AC-3 loads, making it ideal for high-efficiency IE3 and IE4 motor control.
- Modular Compatibility: Seamlessly integrates with SIRIUS 3RT2 accessories, including surge suppressors and function modules.
- Compact Size S2: Delivers high power density in a 55mm width, optimizing space within dense electrical panels.
- Environmental Resilience: Rated for operational temperatures from -25 °C to +60 °C with 690V insulation voltage.
What is the difference between the 3RT2035-3AK60 and the 3RT2035-1AK60?
The "3" in the eighth position indicates spring-type terminals for the control and auxiliary circuits, whereas the "1" designates standard screw terminals. Both share the same power rating and 120V coil.
Can this contactor be used with high-efficiency IE3 motors?
Yes, the Siemens 3RT2 series is optimized and tested for the higher inrush currents typical of IE3 and IE4 class motors.
Is this unit DIN rail mountable?
The S2 size housing is designed for both 35mm DIN rail mounting and traditional screw-mount chassis installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $220.45
-65%$220.45
$77.16Siemens Industrial Controls 3RT2035-3AK60 Contactor
