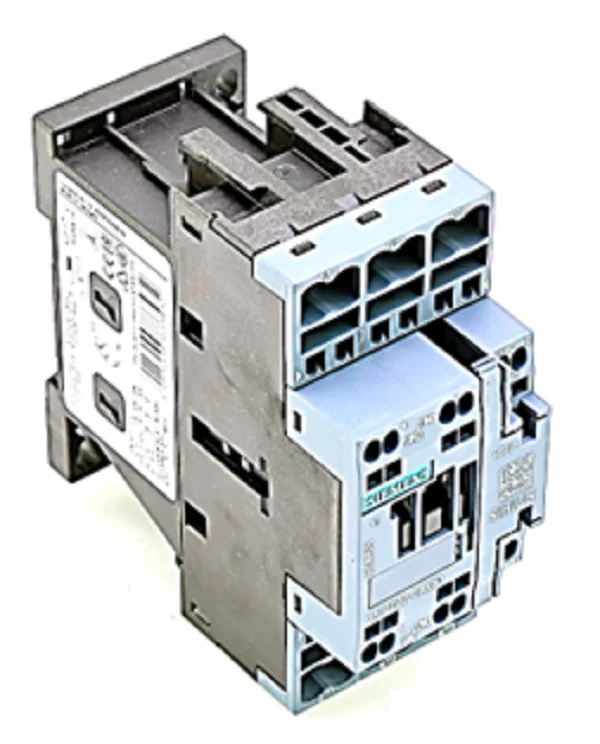

Siemens Industrial Controls 3RT2027-2AK60 Contactor
The Siemens Sirius 3RT2027-2AK60 Contactor is a heavy-duty industrial switching solution engineered for reliable 3-pole motor control in AC-3 applications. Operating with a 120V AC coil (60Hz), this Size S0 contactor is rated for a continuous operating current of 32A and can handle motor loads up to 15 kW at 400V. This unit features high-integrity spring-loaded terminals, providing vibration-proof connections that are essential for high-duty cycle environments where traditional screw terminals may loosen over time. The integrated 1NO/1NC auxiliary contacts allow for immediate integration into signaling and interlocking circuits without requiring additional add-on blocks. Designed for seamless mounting on a standard 35mm DIN rail, this IEC-compliant magnetic contactor ensures stable performance and rapid arc suppression, making it a staple for contractors managing HVACR systems and industrial automation panels. Its compact footprint facilitates high-density arrangement within control cabinets while maintaining the thermal efficiency required for demanding 3-phase electrical loads.
Key Benefits- Vibration-Proof Wiring: High-tension spring-loaded terminals eliminate the need for periodic re-torqueing and ensure long-term connection stability.
- Optimized Size: The S0 frame size provides a high power-to-space ratio, allowing for 32A capacity in a compact housing.
- Integrated Logic: Factory-installed 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts streamline control circuit wiring.
- Global Standard Compliance: Fully rated for AC-3 and AC-3e duty cycles, meeting strict IEC 60947 and UL/CSA requirements for industrial motor starting.
- Does this contactor support 120V control circuits? Yes, the coil is specifically rated for 110V AC at 50Hz and 120V AC at 60Hz.
- Can I use this for 3-phase motor applications? Absolutely, it is a 3-pole device designed for switching three-phase motors up to 15 kW / 400 V.
- What mounting options are available? The unit is designed for 35mm DIN rail snap-on mounting or can be screw-mounted in a vertical position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
