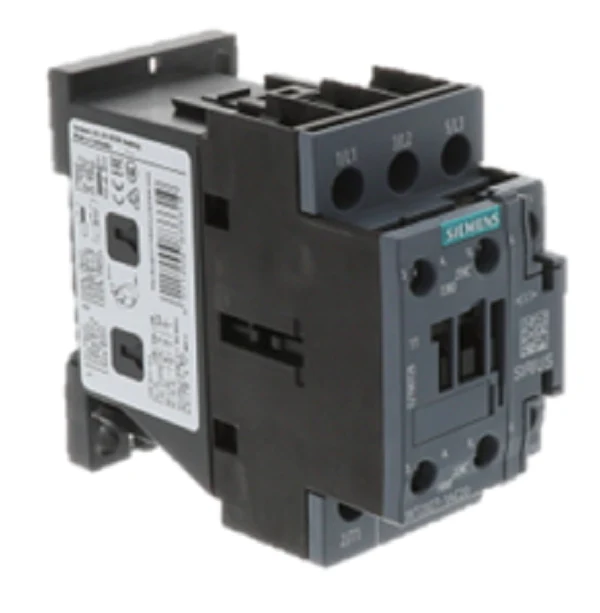

Siemens Industrial Controls 3RT2027-1AC20 Contactor
The Siemens 3RT2027-1AC20 is a heavy-duty, industrial-grade power contactor designed for high-cycle motor switching applications. Engineered within the SIRIUS Innovations family, this Size S0 contactor delivers reliable performance for AC-3 inductive loads up to 32A and 15 kW at 400V. This 3-pole unit operates on a standard 24V AC 50/60 Hz control coil, making it a staple for HVACR control circuits and industrial automation panels requiring finger-safe screw terminal connections. With 1 NO (Normally Open) and 1 NC (Normally Closed) integrated auxiliary contacts, it provides immediate feedback logic without needing extra blocks, though it is fully expandable for complex signaling requirements. Whether you are performing a Direct On Line (DOL) motor start or replacing an older 3RT1034-1AC20 model, this unit ensures high contact stability and mechanical durability exceeding 10 million cycles. The rugged IP20-rated enclosure is designed for 35mm DIN rail or surface mounting, facilitating a quick retrofit into existing control cabinets.
Key Benefits:- High Current Capacity: Rated for 32A (AC-3) and up to 50A (AC-1) to handle demanding resistive and inductive loads.
- Integrated Logic: Built-in 1NO + 1NC auxiliary contacts eliminate the need for additional add-on blocks for basic interlocking.
- Versatile Mounting: Standard S0 frame size supports rapid DIN rail installation or secure surface mounting in any orientation.
- Global Standards: Fully compliant with IEC 60947, UL, and CSA specifications for use in international electrical assemblies.
- What is the maximum horsepower rating for this contactor? At 460V, the 3RT2027-1AC20 is rated for up to 20 HP, and 25 HP at 575V for 3-phase commercial motors.
- Can I add more auxiliary circuits to this unit? Yes, the S0 frame allows for front-mounted or side-mounted auxiliary switch blocks to expand up to 4 additional contacts.
- What is the compatible overload relay for motor protection? This contactor is designed for direct mounting with the 3RU21 thermal overload or 3RB30 electronic overload relays.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
