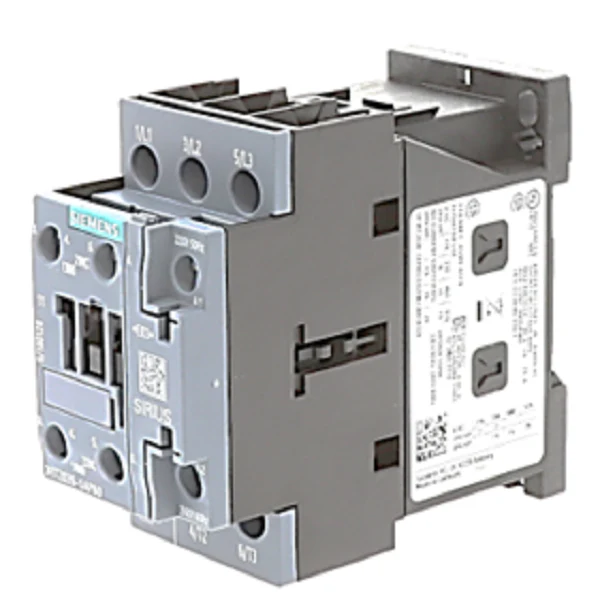

Siemens Industrial Controls 3RT2026-1AP60 Contactor
The Siemens 3RT2026-1AP60 is a high-performance SIRIUS S0 power contactor designed for demanding commercial and industrial motor control applications. Engineered for 3-phase switching, this IEC-rated contactor features a 220V/240V AC coil (50/60Hz) and is rated for a 25 Amp AC-3 load. It provides reliable operation for motors up to 7.5 HP at 230V and 15 HP at 460V, making it an essential component for HVACR motor starters and automation panels. The unit comes standard with integrated 1 NO + 1 NC auxiliary contacts and utilizes screw terminals for secure, vibration-resistant wiring. Its compact S0 frame size allows for seamless DIN rail mounting or traditional screw-on installation. Built for durability, this magnetic contactor is the direct electrical successor to the obsolete 3RT1026-1AP60, ensuring a simplified upgrade path for existing SIRIUS Innovation control systems.
Key Benefits:
- Broad Compatibility: Direct physical and functional replacement for legacy 3RT1026-1AP60 series components.
- Integrated Control: Built-in 1NO-1NC auxiliary contacts eliminate the need for extra add-on blocks in many standard motor control circuits.
- Industrial Endurance: Mechanical life rated for up to 10 million operating cycles under standard conditions.
- Safety First: Finger-safe design compliant with IP20 standards for safe handling during panel maintenance.
- Versatile Mounting: Supports standard 35mm DIN rail mounting or surface mounting for flexible field installation.
Common Questions:
Can I use this contactor as a replacement for the older 3RT1026 model?
Yes, the 3RT2026-1AP60 is the direct dimensional and electrical replacement for the 3RT1026-1AP60. However, ensure that any existing top-mounted accessories are compatible with the new 3RT2 frame size.
What is the maximum horsepower rating for this 25A contactor?
This 3-pole contactor is rated for 7.5 HP at 230V and up to 15 HP at 460V for 3-phase AC-3 motor loads.
Does this unit come with a surge suppressor?
While the 3RT2026-1AP60 does not include an integrated suppressor, it is designed for snap-on varistors or RC elements to protect sensitive upstream PLC outputs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
