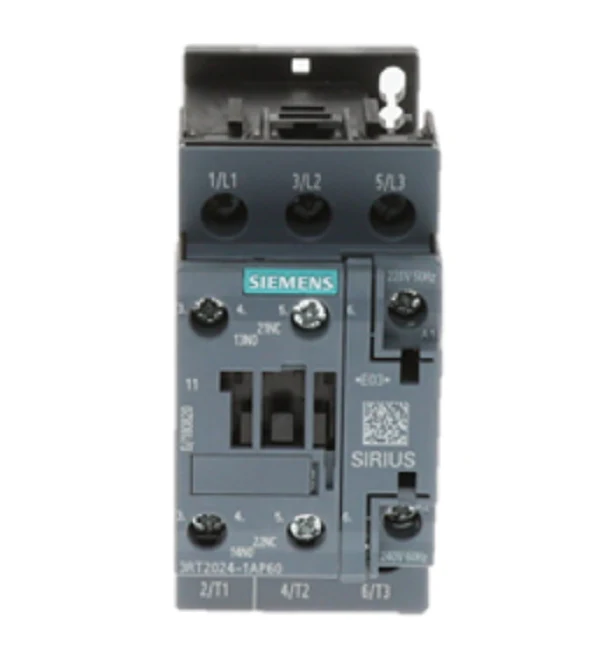

Siemens Industrial Controls 3RT2024-1AP60 Contactor
The Siemens 3RT2024-1AP60 is a heavy-duty SIRIUS power contactor engineered for demanding motor switching and resistive load applications. As a Size S0 contactor, this unit is designed for a 12A inductive load (AC-3) and up to 40A for resistive (AC-1) service, making it a reliable choice for 3-phase motors up to 7.5 HP at 460V. This model features a 240VAC 60Hz control coil (compatible with 220VAC 50Hz) and comes standard with 1NO/1NC integrated auxiliary contacts for status feedback to your PLC or control circuit. The compact frame and screw-type terminals ensure a secure, finger-safe connection (IP20) while saving critical rail space in industrial control panels. It serves as a direct 3RT1024-1AP60 replacement, utilizing the modern 3RT2 architecture for enhanced mechanical service life and seamless integration with 3RU2 thermal overload relays.
Key Benefits
- Full-Voltage Non-Reversing (FVNR) capability for reliable 5.5kW motor control.
- Integrated 1NO and 1NC auxiliary contacts provide built-in logic without the need for additional add-on blocks.
- SIRIUS modular system compatibility allows for easy mounting of surge suppressors and mechanical latches.
- Rated for 10 million mechanical switching cycles to ensure maximum system uptime in high-duty environments.
- Universal DIN rail or surface mounting options provide flexibility for field retrofits.
Common Questions
Is this contactor compatible with older 3RT1 series components?
The 3RT2024-1AP60 is the direct successor to the 3RT1024 series. While it fits the same footprint, it is recommended to verify the specific terminal heights when replacing older units in tightly packed arrays.
Can I expand the number of auxiliary contacts?
Yes, the Size S0 frame supports top-mounted or side-mounted auxiliary switch blocks to increase the number of available NO and NC contacts for complex interlocking sequences.
What is the maximum ambient operating temperature?
This unit is designed to operate reliably in temperatures up to 60°C (140°F), provided the appropriate derating factors for current are applied in high-heat environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $73.71
-65%$73.71
$25.80Siemens Industrial Controls 3RT2024-1AP60 Contactor
The Siemens 3RT2024-1AP60 is a heavy-duty SIRIUS power contactor engineered for demanding motor switching and resistive load applications. As a Size S0 contactor, this unit is designed for a 12A inductive load (AC-3) and up to 40A for resistive (AC-1) service, making it a reliable choice for 3-phase motors up to 7.5 HP at 460V. This model features a 240VAC 60Hz control coil (compatible with 220VAC 50Hz) and comes standard with 1NO/1NC integrated auxiliary contacts for status feedback to your PLC or control circuit. The compact frame and screw-type terminals ensure a secure, finger-safe connection (IP20) while saving critical rail space in industrial control panels. It serves as a direct 3RT1024-1AP60 replacement, utilizing the modern 3RT2 architecture for enhanced mechanical service life and seamless integration with 3RU2 thermal overload relays.
Key Benefits
- Full-Voltage Non-Reversing (FVNR) capability for reliable 5.5kW motor control.
- Integrated 1NO and 1NC auxiliary contacts provide built-in logic without the need for additional add-on blocks.
- SIRIUS modular system compatibility allows for easy mounting of surge suppressors and mechanical latches.
- Rated for 10 million mechanical switching cycles to ensure maximum system uptime in high-duty environments.
- Universal DIN rail or surface mounting options provide flexibility for field retrofits.
Common Questions
Is this contactor compatible with older 3RT1 series components?
The 3RT2024-1AP60 is the direct successor to the 3RT1024 series. While it fits the same footprint, it is recommended to verify the specific terminal heights when replacing older units in tightly packed arrays.
Can I expand the number of auxiliary contacts?
Yes, the Size S0 frame supports top-mounted or side-mounted auxiliary switch blocks to increase the number of available NO and NC contacts for complex interlocking sequences.
What is the maximum ambient operating temperature?
This unit is designed to operate reliably in temperatures up to 60°C (140°F), provided the appropriate derating factors for current are applied in high-heat environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
