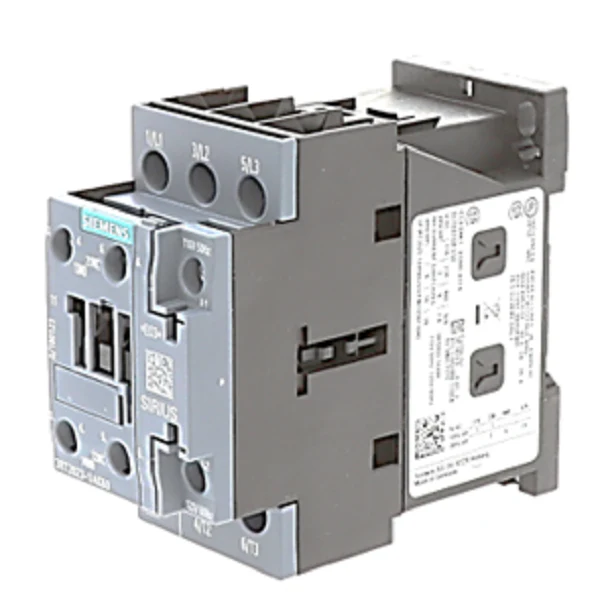

Siemens Industrial Controls 3RT2023-1AK60 Contactor
The Siemens 3RT2023-1AK60 is a high-performance S00 frame size contactor designed for demanding commercial HVACR and industrial motor control applications. This 3-pole power contactor features a 9A AC-3 rating and is engineered for switching 400V 4kW loads with high operational reliability. The integrated 120V AC 50/60Hz coil ensures compatibility with standard control circuits, while the 1NO + 1NC auxiliary contacts provide flexible signaling for status monitoring or electrical interlocking. Built with screw-type terminals, this unit supports secure DIN rail mounting or screw-on installation, making it a drop-in replacement for worn Siriuis Innovation series components. Its compact footprint facilitates high-density panel layouts without compromising heat dissipation or arc suppression capabilities, ensuring stable performance in heavy-duty motor-starting environments.
Key Benefits for Technicians:- Enhanced Durability: Rated for high switching cycles in AC-3 applications, reducing maintenance intervals in high-cycling HVAC systems.
- Integrated Auxiliary Contacts: Built-in 1NO/1NC configuration eliminates the need for additional snap-on blocks for basic status feedback.
- Universal S00 Footprint: Standardized Siemens Sirius design ensures fast swaps and compatibility with existing 3RT accessories.
- Climatic Proofing: Designed to withstand fluctuating ambient temperatures common in outdoor rooftop units and mechanical rooms.
What is the maximum horsepower rating for this contactor?
The 3RT2023-1AK60 is rated for approximately 2 HP at 230V and 5 HP at 460V for 3-phase motors (NEMA sizing equivalent), making it ideal for small pumps and blowers.
Can I use this contactor with a 110V control circuit?
Yes, the 120V AC coil is designed to operate reliably within standard 110V-120V control voltage ranges typically found in mechanical panels.
What is the torque specification for the screw terminals?
For S00 size terminals, ensure a tightening torque of 0.8 to 1.2 Nm (7 to 10.6 lb-in) to prevent high-resistance connections and terminal pitting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
