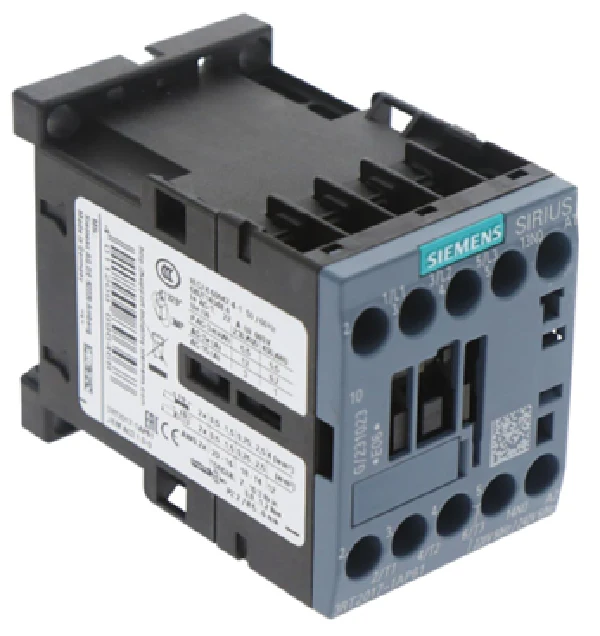

Siemens Industrial Controls 3RT2017-1AP61 Contactor
The Siemens 3RT2017-1AP61 is a high-performance SIRIUS Size S00 contactor engineered for demanding motor control applications in HVACR and industrial automation. This 3-pole power contactor features a 240V AC coil and is rated for a 12A switching capacity (AC-3, 400V), providing reliable operation for three-phase motors up to 5.5 kW. Its compact 45mm frame design optimizes enclosure space, while the screw terminal connections ensure secure wiring for field installations. Designed for high mechanical and electrical endurance, the Siemens SIRIUS 3RT20171AP61 integrates seamlessly with 3RV2 motor starter protectors and 3RU2 thermal overload relays. This unit is built to withstand rigorous cycling in compressors, industrial pumps, and ventilation systems, maintaining 1 NO auxiliary contact for status feedback in complex control logic circuits.
Key Benefits:
- High-Efficiency Motor Control: Optimized for AC-3 switching applications up to 12A and 5.5 kW at 400V.
- SIRIUS Modular System: Fully compatible with Siemens auxiliary switches, surge suppressors, and overload relays for custom configurations.
- 240V Control Circuit Compatibility: The 240V AC 50/60Hz coil is ideal for standard HVAC control panels and industrial machinery.
- Space-Saving S00 Frame: Ultra-compact footprint allows for high-density mounting on standard DIN rails.
- Integrated Auxiliary Contact: Built-in 1 NO contact provides essential signaling for automation and monitoring systems.
Common Questions:
What is the maximum horsepower rating for the 3RT2017-1AP61?
This contactor is typically rated for three-phase motors up to 3 HP at 230V or 7.5 HP at 460V, depending on the specific motor FLA and service factor.
Can I mount this contactor in any orientation?
The unit is designed for vertical mounting on a standard 35mm DIN rail, though it supports a tilt of +/- 22.5 degrees on a vertical mounting surface without affecting performance.
Does this unit support DC control voltages?
No, the 3RT2017-1AP61 is equipped with a 240V AC coil. For DC control applications, a specific DC-rated coil version within the Siemens 3RT20 series must be selected.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $96.14
-65%$96.14
$33.65Siemens Industrial Controls 3RT2017-1AP61 Contactor
The Siemens 3RT2017-1AP61 is a high-performance SIRIUS Size S00 contactor engineered for demanding motor control applications in HVACR and industrial automation. This 3-pole power contactor features a 240V AC coil and is rated for a 12A switching capacity (AC-3, 400V), providing reliable operation for three-phase motors up to 5.5 kW. Its compact 45mm frame design optimizes enclosure space, while the screw terminal connections ensure secure wiring for field installations. Designed for high mechanical and electrical endurance, the Siemens SIRIUS 3RT20171AP61 integrates seamlessly with 3RV2 motor starter protectors and 3RU2 thermal overload relays. This unit is built to withstand rigorous cycling in compressors, industrial pumps, and ventilation systems, maintaining 1 NO auxiliary contact for status feedback in complex control logic circuits.
Key Benefits:
- High-Efficiency Motor Control: Optimized for AC-3 switching applications up to 12A and 5.5 kW at 400V.
- SIRIUS Modular System: Fully compatible with Siemens auxiliary switches, surge suppressors, and overload relays for custom configurations.
- 240V Control Circuit Compatibility: The 240V AC 50/60Hz coil is ideal for standard HVAC control panels and industrial machinery.
- Space-Saving S00 Frame: Ultra-compact footprint allows for high-density mounting on standard DIN rails.
- Integrated Auxiliary Contact: Built-in 1 NO contact provides essential signaling for automation and monitoring systems.
Common Questions:
What is the maximum horsepower rating for the 3RT2017-1AP61?
This contactor is typically rated for three-phase motors up to 3 HP at 230V or 7.5 HP at 460V, depending on the specific motor FLA and service factor.
Can I mount this contactor in any orientation?
The unit is designed for vertical mounting on a standard 35mm DIN rail, though it supports a tilt of +/- 22.5 degrees on a vertical mounting surface without affecting performance.
Does this unit support DC control voltages?
No, the 3RT2017-1AP61 is equipped with a 240V AC coil. For DC control applications, a specific DC-rated coil version within the Siemens 3RT20 series must be selected.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
