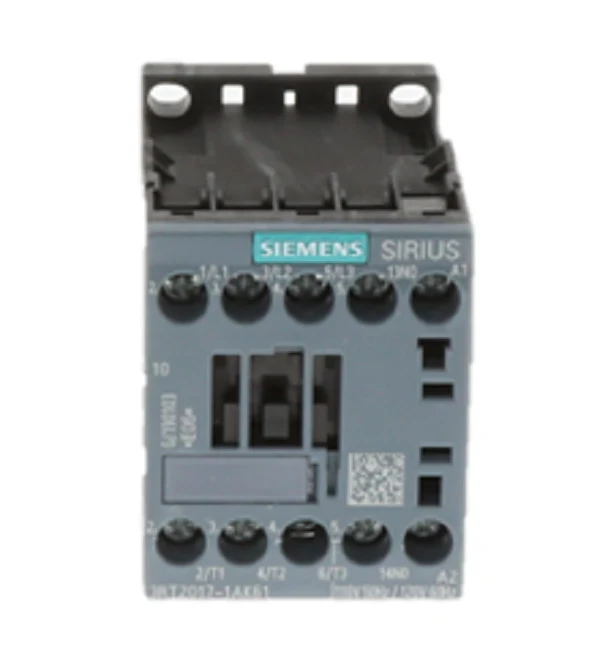

Siemens Industrial Controls 3RT2017-1AK61 Contactor
The Siemens 3RT2017-1AK61 is a high-performance SIRIUS 3-pole power contactor designed for heavy-duty motor control. This size S00 contactor is optimized for IE3/IE4 motors, providing a rated current of 12A (AC-3) and a power rating of 5.5 kW at 400V. Built with screw terminals, it ensures a secure, high-integrity connection under vibration-prone conditions. The unit features an integrated 1NO auxiliary contact and operates on a 120V AC (60 Hz) / 110V AC (50 Hz) control voltage. As a core component of the SIRIUS modular system, this contactor provides seamless integration with thermal or electronic overload relays. Its compact 45mm frame density allows for space-saving control cabinet layouts while maintaining a mechanical service life of up to 30 million switching cycles. Rated for AC-3e/AC-3 applications, it delivers reliable switching for industrial automation and HVACR drive systems requiring high contact reliability and simplified wiring.
Key Benefits:- High Efficiency Compatibility: Specifically engineered for switching IE3 and IE4 high-efficiency motors without derating.
- Integrated Auxiliary: Includes a factory-installed 1NO auxiliary contact to reduce additional wiring and complexity.
- Extreme Durability: Mechanical service life reaching 30 million cycles ensures long-term reliability in high-cycle industrial environments.
- Modular Design: Standardized S00 frame size allows for tool-free assembly with auxiliary switches and surge suppressors.
- Global Standards: Fully compliant with IEC, UL, and CSA certifications for deployment in international projects.
- What is the maximum horsepower rating for this contactor? At 460V, the 3RT2017-1AK61 is rated for up to 7.5 HP, and 3 HP at 230V for 3-phase applications.
- Check compatibility with 120V versus 110V systems? This multi-frequency coil supports both 110V AC at 50Hz and 120V AC at 60Hz terminals.
- Can I add additional auxiliary contacts? Yes, the SIRIUS S00 modular system allows you to snap on front-mount or side-mount auxiliary blocks for expanded signaling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
