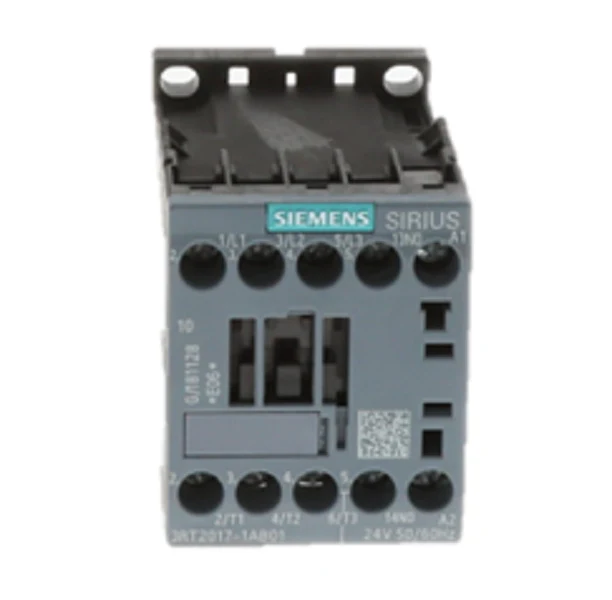

Siemens Industrial Controls 3RT2017-1AB01 Contactor
The Siemens Sirius 3RT2017-1AB01 is a high-performance 3-pole power contactor engineered for heavy-duty industrial and HVACR motor control applications. Operating on a 24V AC 50/60 Hz coil, this Size S00 unit provides a robust 12AMP AC-3 rating at 400V, making it suitable for 3 HP motors at 230V and 7.5 HP at 460V. Designed with screw terminals for secure electrical connections, it features a normally open (1 NO) auxiliary contact integrated into the base unit to support control circuit monitoring. This IE3/IE4 ready contactor ensures high operational reliability and was designed as the direct functional replacement for the legacy 3RT1017-1AB01 series. With a mechanical service life of up to 30 million cycles and IP20 finger-safe protection, it meets the rigorous demands of IEC 60947-4-1 standards while maintaining a compact footprint for DIN rail or screw-on mounting.
Key Benefits:- Enhanced Compatibility: Direct physical and electrical replacement for the 3RT1017-1AB01, allowing for seamless upgrades in existing Siemens control panels.
- Versatile Application: Optimized for AC-3 inductive loads and AC-1 resistive loads up to 22A, providing flexible control for motors and heating elements.
- Reliable Termination: Features standard screw terminals that ensure vibration-resistant connections and reduce maintenance requirements in high-vibration HVACR environments.
- Expandable Design: Compatible with a full range of SIRIUS 3RT2 accessories, including front and side-mounted auxiliary switches and 3RU21 thermal overload relays.
- Compact S00 Frame: Space-saving design facilitates high-density mounting on standard 35mm DIN rails, maximizing enclosure efficiency.
What is the maximum horsepower rating for the 3RT2017-1AB01?
This contactor is rated for 3 HP at 230V and 7.5 HP at 460V for three-phase applications, supporting a 12A operating current at 400V (AC-3).
Does this unit include an auxiliary contact?
Yes, the Siemens 3RT2017-1AB01 comes standard with one integrated 1 NO (normally open) auxiliary contact. Additional auxiliary blocks can be added if your control logic requires more poles.
Can this contactor replace older 3RT1 series models?
As a SIRIUS Innovation series product, it is the designated replacement for 3RT1017 contactors. It maintains the same dimensions and mounting profile, though it is recommended to verify overall circuit compatibility.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
