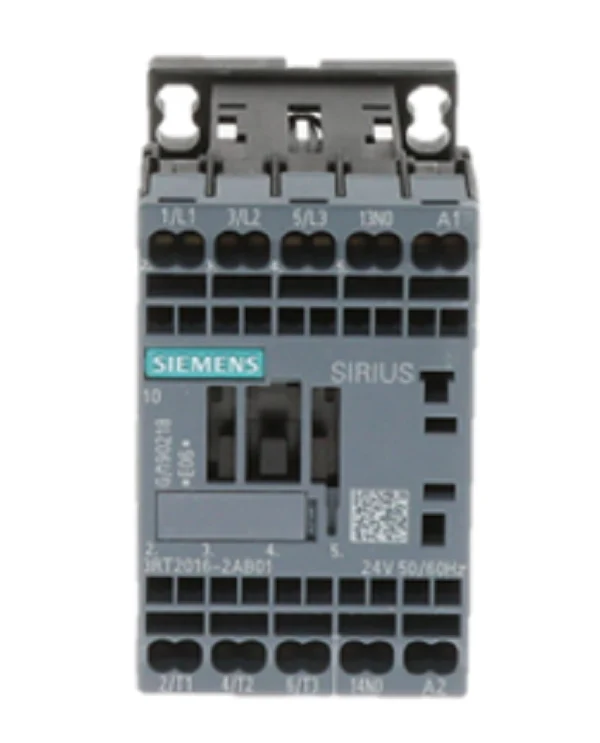

Siemens Industrial Controls 3RT2016-2AB01 Contactor
The Siemens 3RT2016-2AB01 Contactor is a compact, industrial-grade solution designed for the demanding requirements of HVACR and motor control systems. Part of the SIRIUS 3RT2 series, this size S00 power contactor features a 24V AC coil (50/60 Hz) and is rated for a 9A operating current at AC-3 (400V). Built with spring-loaded terminals, this unit ensures vibration-proof, maintenance-free connections, making it an ideal choice for high-cycle applications in air handlers and refrigeration compressors. With a 3-pole configuration and an integrated 1 NO (normally open) auxiliary contact, this 9A 3-pole contactor provides reliable switching for loads up to 4 kW. Its space-saving 45mm width optimizes cabinet density, while the 6 kV surge voltage resistance ensures robust performance against transient spikes. This Siemens SIRIUS contactor represents a standard of reliability for field technicians seeking precise 24VAC motor control without the bulk of traditional screw-terminal hardware.
Key Benefits- High-Density Design: The S00 frame size at 45mm wide allows for maximum utilization of DIN rail space in crowded control panels.
- Secure Terminals: Spring-type terminals eliminate the need for periodic re-torquing and prevent loose connections caused by mechanical vibration.
- Climate Resilience: Rated for operation between -25 °C and +60 °C, ensuring stability in varied mechanical room environments.
- High Endurance: Mechanical service life of up to 30 million switching cycles for long-term operational consistency.
- Modular Compatibility: Seamlessly integrates with the full SIRIUS ecosystem, including 3RU21 thermal overload relays and 3RH29 auxiliary switch blocks.
What is the maximum horsepower rating for this contactor?
At 460V, this Siemens 3RT2016-2AB01 is typically rated for 5 HP motors (AC-3), providing reliable startup performance for standard 3-phase HVAC blowers and pumps.
Does this unit come with an integrated surge suppressor?
The standard model does not include an integrated RC element or varistor, but it is fully compatible with clip-on surge suppressors from the 3RT29 series to protect sensitive PLC outputs.
How do I properly wire the spring-loaded terminals?
To insert or remove conductors, use a flat-head screwdriver angled into the release slot to open the internal tension clamp; this provides a more secure electrical interface than standard screw-down lugs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
