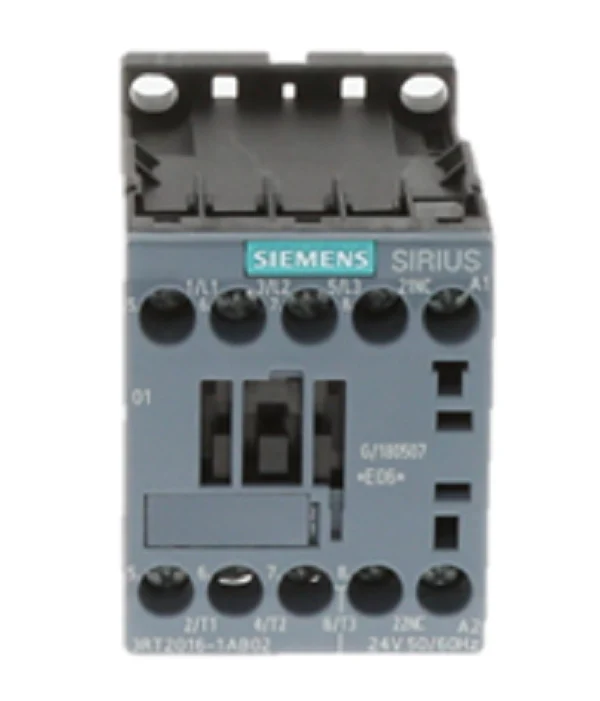

Siemens Industrial Controls 3RT2016-1AB02 Contactor
The Siemens 3RT2016-1AB02 is a robust SIRIUS innovation Size S00 magnetic contactor engineered for high-frequency switching and reliable motor control in industrial HVACR systems. This 3-pole IEC contactor features a 9A AC-3 rating at 400V, making it a standard choice for controlling small motors up to 4 kW. It operates on a 24VAC 50/60Hz coil, facilitating easy integration into existing low-voltage control circuits. Built for durability, the 3RT2016-1AB02 utilizes screw-type terminals for secure wire terminations and is designed for side-by-side mounting without derating up to 60°C. The unit includes one integrated normally closed (1 NC) auxiliary contact, providing essential feedback signals for interlocking or status monitoring. This Siemens power contactor is optimized for modularity, allowing for the quick addition of function modules or surge suppressors to meet specific field requirements while maintaining a compact footprint in the control cabinet.
Key Benefits for the Contractor- High Switching Reliability: Designed for long mechanical and electrical service life in demanding AC-3 and AC-1 applications.
- Small Form Factor: The Size S00 frame maximizes rail space, allowing for more components in tight enclosures.
- Climate-Proof Construction: Rated for global use with multi-standard compliance (UL, CSA, CE) and suitable for extreme operational environments.
- Integrated Auxiliary: Pre-configured with a 1 NC contact to reduce the need for additional add-on blocks in basic control logic.
What is the maximum horsepower rating for this contactor?
The Siemens 3RT2016-1AB02 is typically rated for 2 HP at 230V and 5 HP at 460V for 3-phase applications.
Can I use this contactor for DC loads?
While optimized for AC-3 motor switching, it can handle AC-1 resistive loads up to 22A; for specific DC switching capacities, verify the DC-1 through DC-5 ratings in the technical data sheet.
Are the terminals compatible with ferruled wires?
Yes, the screw terminals are designed to accept solid, stranded, and finely stranded conductors with or without end sleeves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Industrial Controls 3RT2016-1AB02 Contactor
The Siemens 3RT2016-1AB02 is a robust SIRIUS innovation Size S00 magnetic contactor engineered for high-frequency switching and reliable motor control in industrial HVACR systems. This 3-pole IEC contactor features a 9A AC-3 rating at 400V, making it a standard choice for controlling small motors up to 4 kW. It operates on a 24VAC 50/60Hz coil, facilitating easy integration into existing low-voltage control circuits. Built for durability, the 3RT2016-1AB02 utilizes screw-type terminals for secure wire terminations and is designed for side-by-side mounting without derating up to 60°C. The unit includes one integrated normally closed (1 NC) auxiliary contact, providing essential feedback signals for interlocking or status monitoring. This Siemens power contactor is optimized for modularity, allowing for the quick addition of function modules or surge suppressors to meet specific field requirements while maintaining a compact footprint in the control cabinet.
Key Benefits for the Contractor- High Switching Reliability: Designed for long mechanical and electrical service life in demanding AC-3 and AC-1 applications.
- Small Form Factor: The Size S00 frame maximizes rail space, allowing for more components in tight enclosures.
- Climate-Proof Construction: Rated for global use with multi-standard compliance (UL, CSA, CE) and suitable for extreme operational environments.
- Integrated Auxiliary: Pre-configured with a 1 NC contact to reduce the need for additional add-on blocks in basic control logic.
What is the maximum horsepower rating for this contactor?
The Siemens 3RT2016-1AB02 is typically rated for 2 HP at 230V and 5 HP at 460V for 3-phase applications.
Can I use this contactor for DC loads?
While optimized for AC-3 motor switching, it can handle AC-1 resistive loads up to 22A; for specific DC switching capacities, verify the DC-1 through DC-5 ratings in the technical data sheet.
Are the terminals compatible with ferruled wires?
Yes, the screw terminals are designed to accept solid, stranded, and finely stranded conductors with or without end sleeves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
