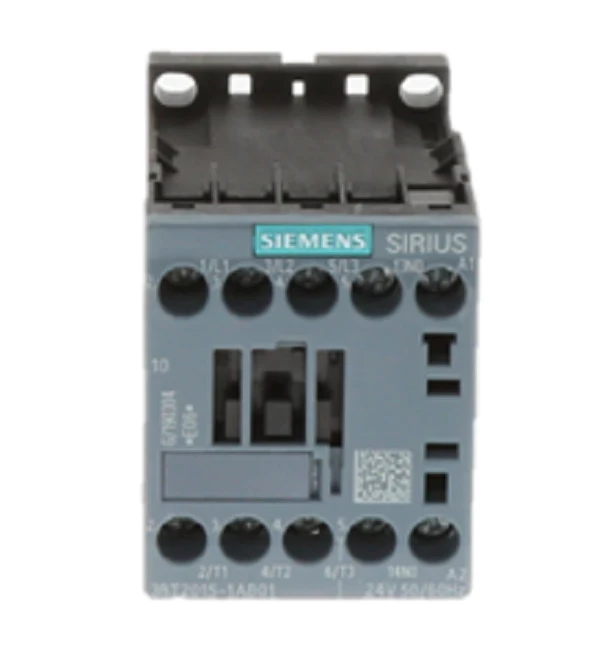

Siemens Industrial Controls 3RT2015-1AB01 Contactor
The Siemens 3RT2015-1AB01 is a high-performance SIRIUS S00 power contactor engineered for demanding industrial motor control applications. This 3-pole IEC contactor is specifically designed for switching motors with an operational current of 7 Amps (AC-3) and up to 18 Amps for resistive loads (AC-1). Operating with a 24V AC 50/60Hz coil, it provides reliable switching for 3-phase motors rated at 2 HP @ 230V and 3 HP @ 460V. As a direct replacement for the legacy 3RT1015 series, this 7A magnetic contactor features a 1 NO auxiliary contact integrated into the base unit for status feedback, making it an essential component for SIRIUS motor starters. The unit supports versatile mounting on a standard 35mm DIN rail and utilizes secure screw terminals for high-vibration environments. Its compact S00 frame size ensures the 3RT2015-1AB01 fits easily into high-density control cabinets while maintaining finger-safe protection and high contact reliability across varying climates.
Key Benefits
- Compact S00 Design: Maximizes cabinet space while providing high-density power switching.
- High Mechanical Endurance: Rated for up to 30 million operating cycles for long-term service life in repetitive switching tasks.
- Enhanced Safety: Finger-safe terminals and IP20 protection rating according to EN 50274 ensure technician safety during maintenance.
- Versatile Wiring: Features standard screw terminals compatible with a wide range of wire gauges and ring lugs.
- Modular Ecosystem: Fully compatible with 3RU21 thermal overload relays and 3RB30 solid-state overloads to form a complete motor protection circuit.
Common Questions
Can I add more auxiliary contacts to this contactor?
Yes, the S00 frame 3RT2015-1AB01 can be expanded using front-mounted auxiliary switch blocks to add up to 4 additional contacts.
Is the 24V coil compatible with DC control circuits?
No, this specific model is designed for a 24V AC coil (50/60Hz). For DC applications, a 3RT2015-1BB41 or similar DC-rated model should be selected.
What is the maximum horsepower this contactor can handle at 460V?
This 7 Amp contactor is rated for a maximum of 3 HP for 3-phase applications at 460V.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
