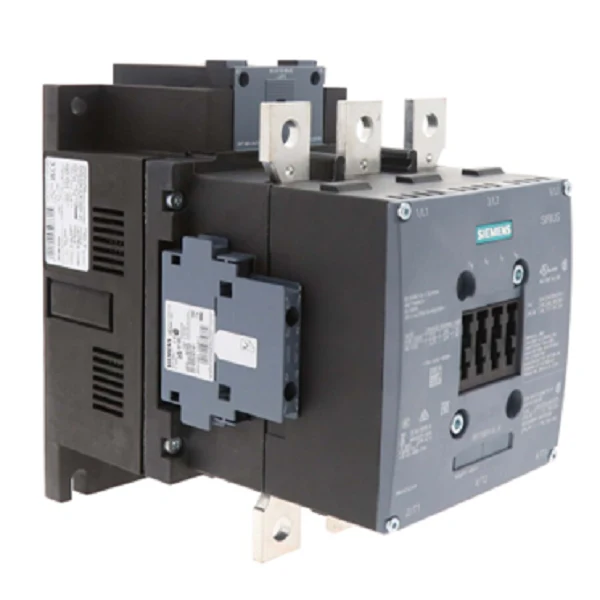

Siemens Industrial Controls 3RT1064-6AF36 Contactor
For heavy industrial motor control and large-scale HVAC power distribution, the Siemens 3RT1064-6AF36 Contactor is a standard-setting component for the S10 frame size. This 3-pole IEC contactor is engineered for high-demand switching of AC-3 loads up to 225 Amps, providing reliable control for 460V motors rated at 150HP. The integrated 120Vac/Vdc coil (universal range 110-127V UC) utilizes a conventional drive system for seamless integration into standard control circuits without additional interface logic.
The SIRIUS 3RT1064-6AF36 features a robust busbar connection design for main power circuits and screw terminals for auxiliary wiring, ensuring secure electrical contact in high-vibration industrial environments. With 2 NO + 2 NC auxiliary contacts pre-installed, this unit provides immediate signaling and interlocking capabilities for complex automation sequences. Its S10 frame size dimensions allow for streamlined panel layouts, replacing aging or inefficient starters with a high-performance Siemens magnetic contactor designed for long-term mechanical service life in rigorous HVACR and manufacturing applications.
-
Key Benefits
- High Current Capacity: Rated for 225A (AC-3) and 275A (AC-1), making it ideal for large chillers, air handlers, and industrial motor loads.
- Universal UC Coil: The 110-127V AC/DC operating range reduces inventory requirements by supporting multiple control voltages in a single unit.
- Integrated Auxiliary Logic: Includes 2 normally open and 2 normally closed contacts for feedback and safety circuits without needing add-on blocks.
- Compact S10 Housing: Optimized footprint for space-constrained electrical cabinets while maintaining proper heat dissipation.
- Busbar-Ready Main Circuit: Designed for high-current throughput with standard busbar mounting, simplifying installation for heavy-gauge conductors.
What is the maximum horsepower rating for the Siemens 3RT1064-6AF36?
This 3-pole contactor is rated for up to 150 HP at 460V and 75 HP at 230V for 3-phase systems.
Can the coil voltage be changed on this S10 frame contactor?
Yes, the 120V AC/DC coil is designed for easy removal and replacement within the Siemens SIRIUS ecosystem if a different control voltage is required for the application.
Is this contactor suitable for resistive heating loads?
Absolutely. Under AC-1 utilization categories, the 3RT1064-6AF36 is rated for up to 275 Amps, making it suitable for high-capacity resistance heating and lighting panels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
