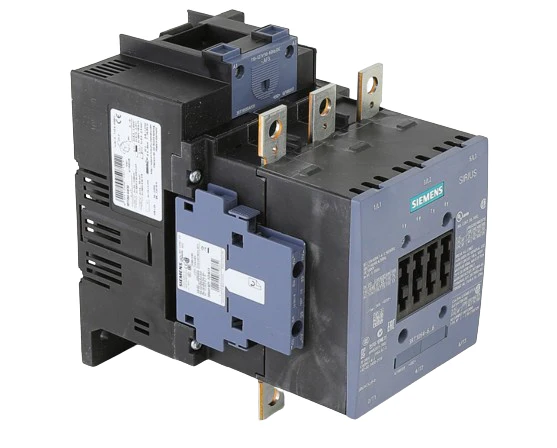

Siemens Industrial Controls 3RT1054-6AF36 Contactor
The Siemens 3RT1054-6AF36 Contactor is a heavy-duty S6 Frame power contactor engineered for high-demand industrial motor control. This 3-pole IEC contactor is rated for 115 Amps (AC-3) and up to 160 Amps (AC-1), supporting 3-phase motors up to 100 HP at 460V. Designed with a versatile 110-127V AC/DC coil, this unit ensures reliable switching performance across variable power supplies without the need for additional coil changes. The Sirius 3RT1054-6AF36 includes integrated 2NO + 2NC auxiliary contacts and features rugged screw terminals for secure busbar or cable connections. Built to meet IEC 60947-4-1 standards, this non-reversing magnetic contactor provides high switching frequency and a mechanical service life of up to 10 million cycles. For HVACR and industrial contractors, the Siemens 3RT10 series delivers a compact footprint and high short-circuit strength, making it the preferred choice for reliable 115A motor starter applications in harsh environments.
Key Benefits:- Universal Voltage Control: The 110-127V AC/DC wide-range coil permits seamless operation in both AC and DC control circuits.
- High Power Density: Delivers 115A of switching capacity in a space-saving S6 frame, ideal for retrofitting and compact control panels.
- Enhanced Monitoring: Factory-installed 2 Normally Open and 2 Normally Closed auxiliary contacts allow for immediate status feedback and interlocking.
- Extreme Durability: Rated for an ambient operating temperature of -25°C to +60°C with an 8kV surge voltage resistance for protection against line transients.
- Installation Flexibility: Supports busbar connections or screw-type terminals for versatile field wiring.
- What is the maximum horsepower rating for this contactor? The 3RT1054-6AF36 is rated for 50 HP at 230V and 100 HP at 460V for 3-phase applications.
- Does this unit come with suppression? This specific model does not include built-in suppression lugs; surger suppressors can be added as modular accessories if required.
- Can I use this for DC-1 resistive loads? Yes, this contactor is rated for resistive loads (AC-1) up to 160 Amps at 40°C.
- What mounting options are available? Due to its S6 frame size, it is typically panel-mounted or fixed to a mounting plate via threaded screws to ensure stability during high-current switching.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
