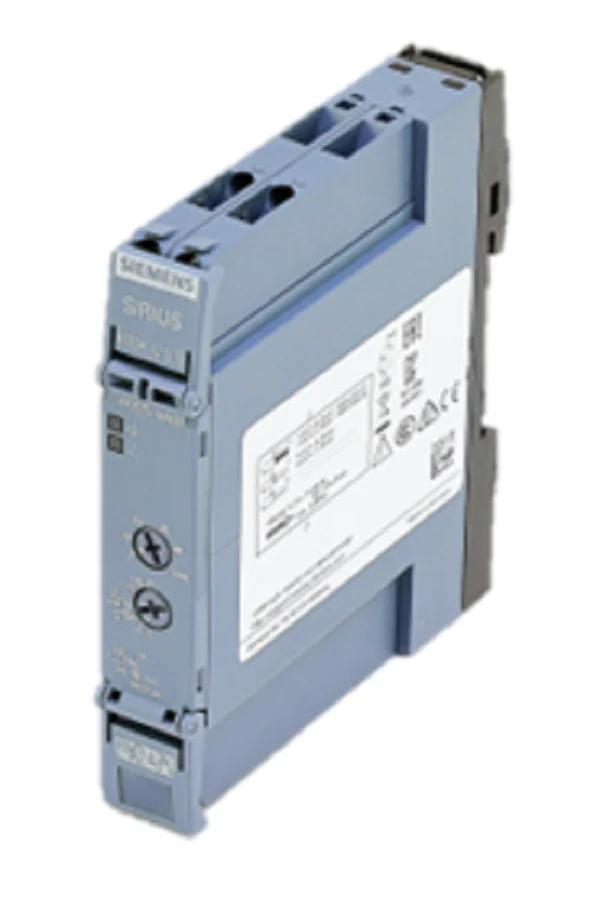

Siemens Industrial Controls 3RP2525-1AW30 Timer
The Siemens SIRIUS 3RP2525-1AW30 is a high-performance electronic on-delay timing relay designed for precision industrial control. Built for demanding environments, this industrial timing relay features a wide-range voltage input of 12-240V AC/DC at 50/60 Hz, ensuring seamless integration across various power profiles. With an adjustable timing range of 0.05 seconds to 100 hours across 7 selectable scales, it provides the versatility required for motor startup sequences, protection circuits, and complex automation logic. This unit utilizes a single changeover contact (SPDT) and is housed in a compact 22.5mm frame for DIN rail mounting, maximizing cabinet space without sacrificing switching reliability.
Engineered for endurance, the 3RP2525-1AW30 offers a mechanical service life of 10 million cycles and a 1% repeat accuracy. The screw terminal connections ensure secure vibration-resistant wiring, while the integrated LED status indicator provides immediate visual feedback on the control supply and switching state. This Siemens 3RP25 series component is a direct upgrade for legacy timing systems, offering superior electromagnetic compatibility (EMC) and finger-safe IP20 protection for modern control cabinets.
Key Benefits- Universal Compatibility: Operates on 12-240V AC/DC, reducing the need for multiple stocked variants.
- Precision Control: Features 7 selectable timing ranges (0.05s to 100h) with high repeatability of 1%.
- Robust Design: IP20 finger-safe housing with high resistance to shock (11g/15ms) and vibration.
- Direct Integration: Standard 22.5mm width and 35mm DIN rail mounting simplify installation in condensed panels.
How do I set the delay time on the Siemens 3RP2525-1AW30?
The duration is set using two rotary dials on the faceplate: one for selecting the coarse timing range (e.g., seconds vs. hours) and a second for fine-tuning the percentage of that range.
Can this relay handle both AC and DC control voltages?
Yes, the 3RP2525-1AW30 is a universal voltage device that supports everything from 12V DC up to 240V AC, making it a versatile 24V/120V timer relay solution.
What is the difference between on-delay and off-delay for this model?
The 3RP2525-1AW30 is specifically an on-delay timer, meaning the contact changes state after the set time has elapsed following the application of supply voltage. For off-delay functions, a different relay in the SIRIUS 3RP25 family would be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
