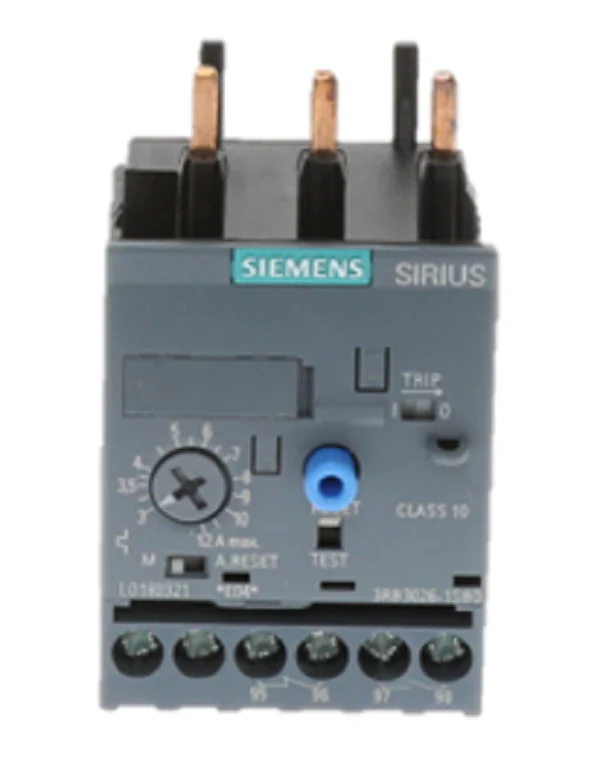

Siemens Industrial Controls 3RB3026-1SB0 Relay
The Siemens 3RB3026-1SB0 is a high-performance SIRIUS electronic overload relay designed for precise motor protection within a 3-12 Amp current range. Engineered for Size S0 contactors, this unit provides solid-state reliability that far surpasses traditional thermal alternatives. It features Class 10E tripping, ensuring rapid response to overload conditions, phase loss, and phase unbalance, effectively preventing catastrophic insulation failure or motor burnout. Designed for versatility, it supports both manual and automatic reset configurations, allowing technicians to tailor the protection logic to specific site requirements. The integrated 1 NO + 1 NC auxiliary contacts provide clear fault signaling for remote monitoring or control circuit interlocking. With screw terminal connections and a compact design, the 3RB3026-1SB0 mounts directly to 3RT2023 through 3RT2028 contactors, streamlining installation in MCC panels, HVAC systems, and industrial pump assemblies. This solid-state motor protector ensures long-term stability with minimal heat dissipation and a wide 1:4 setting range to reduce inventory overhead on the service truck.
Key Benefits- Broad Current Range: Adjustable 3A to 12A setting simplifies inventory by covering multiple motor horsepowers.
- Advanced Protection: Integrated phase failure protection and unbalance detection prevent single-phase damage.
- Reduced Heat Loss: Electronic sensing generates significantly less heat than bimetallic relays, improving cabinet efficiency.
- System Compatibility: Direct mounting to Siemens Size S0 contactors reduces wiring complexity and space requirements.
- Operational Flexibility: Switchable Man/Auto reset modes satisfy diverse automation and safety protocols.
Is the 3RB3026-1SB0 compatible with frequency converters?
Yes, this electronic relay is suitable for use with frequency converters, provided the carrier frequency and current peaks remain within Siemens' technical thresholds.
What is the difference between Class 10 and Class 10E?
The "E" designation refers to its electronic nature. While it follows the Class 10 tripping curve (tripping within 10 seconds at 6x current), the electronic circuitry offers higher accuracy and faster phase-loss detection than mechanical Class 10 relays.
Can I use this relay for single-phase loads?
This specific model is designed for three-phase motor protection. For single-phase applications, ensure all poles are wired in series or consult the Siemens 3RU series thermal relays.
