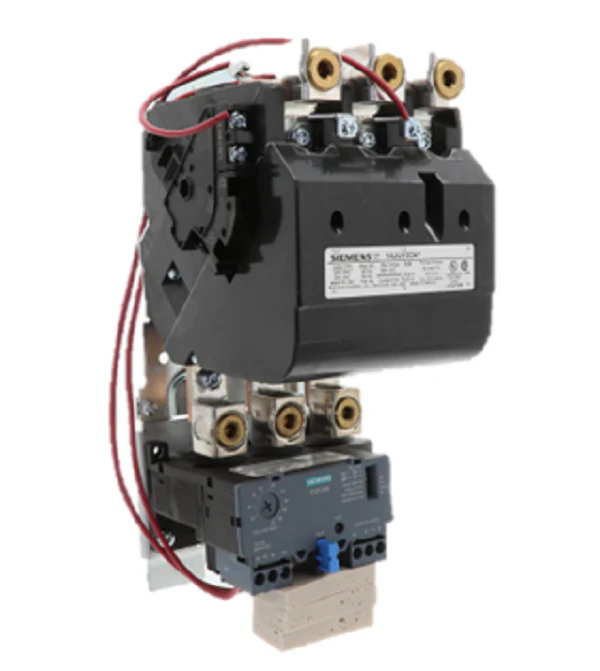

Siemens Industrial Controls 14JUH32AA Starter
The Siemens 14JUH32AA Starter is a heavy-duty NEMA Size 4 motor starter designed for high-demand industrial applications. This non-reversing motor starter operates on a 110-120/220-240Vac coil voltage and is engineered to manage three-phase motors up to 100 HP at 460V. Built with a three-pole configuration, it features an Open Type enclosure (Frame Size B) for seamless integration into control panels. The unit is equipped with a high-precision ESP200 solid-state overload relay, offering an adjustable current range of 50-200 Amps. This electronic overload provides superior protection against phase loss and unbalance, featuring a selectable trip class (5, 10, 20, or 30) to match specific motor start-up characteristics. With auto/manual reset capabilities and a rugged design rated for 5,000,000 switching cycles, this Siemens 14JUH starter ensures maximum uptime and precise motor control for contractors managing critical HVACR and industrial pump systems.
Key Benefits- Advanced Motor Protection: The integrated ESP200 solid-state overload relay protects against phase failure and ground faults, vital for expensive heavy-duty motors.
- Precision Adjustability: The 50-200 Amp rating is easily adjusted via a rotary dial, allowing for exact matching to motor Full Load Amps (FLA).
- Versatile Reset Modes: Field-configurable for automatic, manual, or remote reset to suit specific local or remote monitoring requirements.
- Industrial Durability: NEMA Size 4 rating ensures the internal contacts and mechanical components withstand high-cycle applications without premature wear.
What is the maximum horsepower rating for this Size 4 starter?
This starter is rated for up to 100 HP at 460V/575V and 40-50 HP at 200V/230V, making it suitable for large-scale industrial fans and compressors.
Can I adjust the trip class on the solid-state overload?
Yes, the ESP200 relay allows you to select between trip classes 5, 10, 20, and 30, providing flexibility for standard or high-inertia loads.
Does this unit include an enclosure?
No, this is an Open Type unit (Frame B) intended for installation within a larger control cabinet or custom housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
