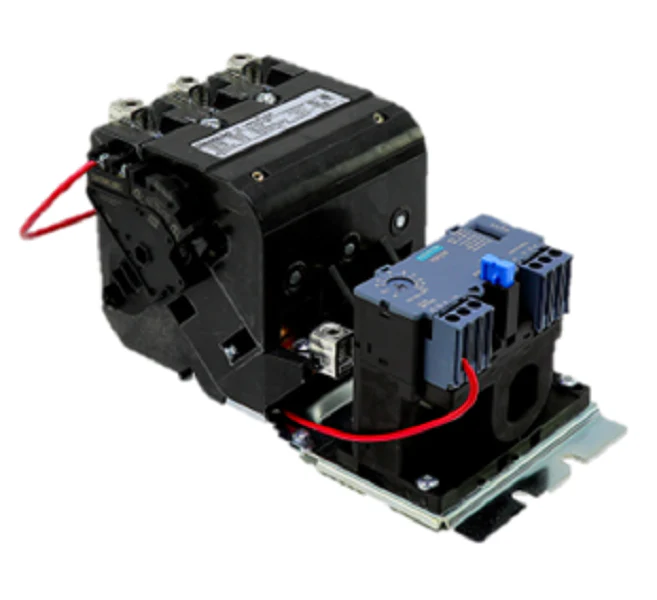

Siemens Industrial Controls 14HUG32AF Starter
The Siemens 14HUG32AF is a NEMA Size 3 heavy duty motor starter engineered for rigorous industrial motor control. Built for three-phase across-the-line starting, this Class 14 non-reversing starter provides 50 HP protection at 460V, making it a reliable choice for high-demand HVACR and industrial pump applications. The unit features a 120V separate control coil (110V 50Hz / 120V 60Hz) to isolate control circuitry from the main power feed, ensuring stable actuation in commercial environments. With a 3-pole open type design, this starter is ready for panel mounting into custom enclosures or machine control centers.
Maintenance and reliability are centered around the integrated solid-state overload relay (OLR), which offers a broad 25-100 Amp overload rating. This ESP200 technology provides superior motor protection compared to traditional bimetallic heaters, including phase loss protection and selectable trip classes. The manual and automatic reset functions offer flexibility for troubleshooting, while the heavy-duty frame size B construction utilizes large silver cadmium contacts for extended electrical life and gravity dropout to ensure safe circuit interruption.
- Universal Compatibility: Supports motor voltages up to 600VAC with common horsepower ratings of 25 HP at 200V, 30 HP at 230V, and 50 HP at 460V to 575V.
- Advanced Motor Protection: The solid-state 25-100A overload relay eliminates the need for separate heaters and provides more accurate trip curves.
- Rugged Contact Design: Equipped with large silver cadmium contacts designed to withstand up to 5,000,000 operating cycles.
- Contractor-Friendly Installation: Features straight-through wiring for rapid termination and easy coil access if maintenance is required in the field.
- Versatile Reset Options: Includes auto, manual, and remote reset capability to match specific application safety protocols.
Common Questions
Can I use this starter for a 50HP 460V motor?
Yes, the Siemens 14HUG32AF is rated specifically for 50 HP at 460V and 575V three-phase applications.
What is the difference between a separate control coil and common control?
A separate control coil voltage (120Vac) means the coil is powered by a separate 120V source, often used for safety interlocks, whereas common control pulls coil power directly from the line voltage.
Do I need to purchase extra heaters for the overload?
No, this model uses a built-in solid-state overload relay with an adjustable 25-100A range, removing the need for physical thermal heater elements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
