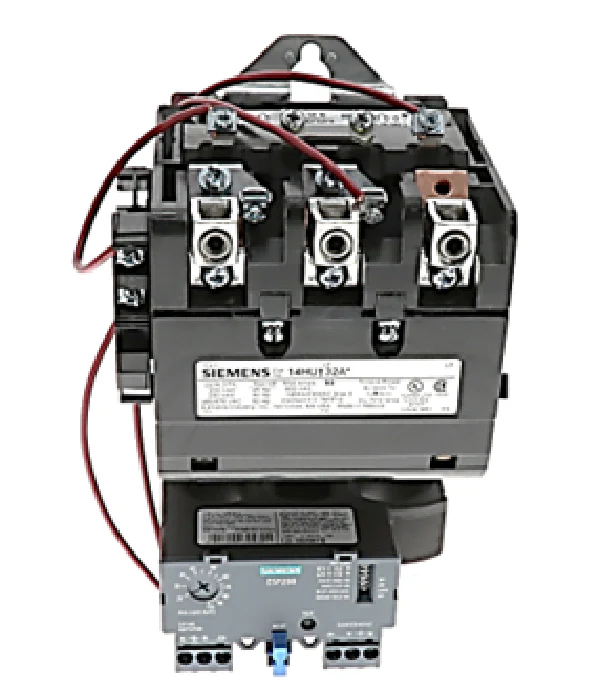

Siemens Industrial Controls 14HUG32AA Starter
The Siemens 14HUG32AA Starter is a NEMA Size 3 heavy-duty motor control solution engineered for rigorous industrial applications. Built on the Class 14 design, this three phase motor starter provides full-voltage non-reversing (FVNR) control for motors up to 50 HP at 460/575V. It features a versatile dual voltage coil (110-120/220-240Vac) and is housed in an open type enclosure, making it ideal for integration into custom control panels or motor control centers (MCCs).
This unit is equipped with a high-precision ESP200 solid state overload relay, offering an adjustable current range of 25-100 Amps. The solid state overload provides superior protection compared to bimetallic heaters, including true phase loss protection and selectable trip class settings (Class 5, 10, 20, or 30). Contractors can toggle between auto/manual reset modes to suit specific system requirements. The frame size B construction utilizes large silver cadmium contacts to ensure long-term switching reliability under high-amperage loads.
Key Benefits
- Enhanced Motor Protection: The ESP200 solid state overload detects phase unbalance and trips within 3 seconds of a phase loss, preventing catastrophic motor winding failure.
- Reduced Maintenance: Self-powered overload relay eliminates the need for external power sources, while the manual/auto reset functionality allows for remote or local troubleshooting.
- Natural Compatibility: Designed for standard NEMA size 3 footprints, ensuring a drop-in fit for existing Siemens 14HUG32AA or legacy Furnas-style hardware.
- Reliable Switching: Heavy-duty 3-pole contactor design handles high-inertia starts common in HVACR and industrial pumping applications.
Common Questions
Is this starter compatible with 208V systems?
Yes, while the coil is rated for 120/240V, the 14HUG32AA can manage 3-phase loads at 200/208V with a maximum rating of 25 HP.
How do I adjust the overload settings?
The solid state overload relay features a visible dial to set the Full Load Amps (FLA) within the 25-100A range. Ensure the setting matches the motor nameplate FLA for optimal AEO performance.
Does this unit include auxiliary contacts?
The standard configuration includes one normally open (1NO) auxiliary contact for status signaling or interlocking circuits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
