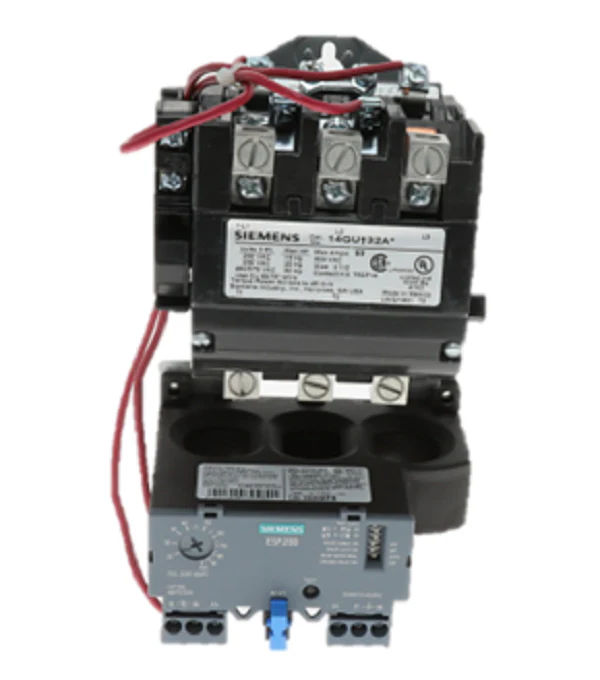

Siemens Industrial Controls 14GUG32AA Starter
Sizing a motor starter shouldn't involve compromise, which is why the Siemens Industrial Controls 14GUG32AA Starter is engineered as a NEMA Size 2 1/2. This unique half-size design provides the performance of a Size 3 in the more compact frame of a Size 2, saving critical enclosure space without sacrificing heavy-duty performance. This three-phase non-reversing motor starter is built for demands where standard sizes either fall short or waste space. Equipped with an ESP200 solid-state overload relay, it offers a wide 25-100 Amp adjustment range, allowing for precise protection across various motor loads. The dual-voltage 110-120/220-240Vac coil ensures flexibility during field installation, while the 3-pole configuration handles full voltage starting reliably. For HVACR contractors, the solid-state overload with auto/manual reset provides superior protection against phase loss and unbalance, minimizing downtime in critical ventilation and pumping applications. This open-type unit is ideal for panel mounting where a rugged, reliable Class 14 motor controller is required for industrial horsepower ratings.
- Optimized Footprint: The NEMA Size 2.5 frame allows for higher amperage capacity in less space compared to traditional NEMA starters.
- Precise Motor Protection: The ESP200 solid-state relay features a wide 25-100 Amp overload rating and selectable trip classes (5, 10, 20, 30) for customized load protection.
- Field Versatility: A dual-voltage 120V/240V coil makes this unit compatible with multiple control circuit configurations commonly found in industrial sites.
- Reliable Switching: Heavy-duty construction rated for up to 10,000,000 mechanical cycles ensuring long-term operational life in high-cycle environments.
- Advanced Diagnostics: Includes phase loss protection and an overload test feature for simplified troubleshooting and commissioning.
Common Questions about the Siemens 14GUG32AA
What is the maximum horsepower rating for this starter?
The 14GUG32AA is rated for 15 HP at 200V, 20 HP at 230V, and up to 30 HP at 460/575V 3-phase applications.
Does this unit include an enclosure?
No, this is an Open Type Enclosure (NEMA Type 0) designed specifically for mounting inside an existing control panel or motor control center.
Can the overload relay be reset remotely?
While the base unit features an auto/manual reset on the ESP200 relay, it is compatible with Siemens remote reset modules for increased accessibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,046.81
-65%$1,046.81
$366.38Siemens Industrial Controls 14GUG32AA Starter
Sizing a motor starter shouldn't involve compromise, which is why the Siemens Industrial Controls 14GUG32AA Starter is engineered as a NEMA Size 2 1/2. This unique half-size design provides the performance of a Size 3 in the more compact frame of a Size 2, saving critical enclosure space without sacrificing heavy-duty performance. This three-phase non-reversing motor starter is built for demands where standard sizes either fall short or waste space. Equipped with an ESP200 solid-state overload relay, it offers a wide 25-100 Amp adjustment range, allowing for precise protection across various motor loads. The dual-voltage 110-120/220-240Vac coil ensures flexibility during field installation, while the 3-pole configuration handles full voltage starting reliably. For HVACR contractors, the solid-state overload with auto/manual reset provides superior protection against phase loss and unbalance, minimizing downtime in critical ventilation and pumping applications. This open-type unit is ideal for panel mounting where a rugged, reliable Class 14 motor controller is required for industrial horsepower ratings.
- Optimized Footprint: The NEMA Size 2.5 frame allows for higher amperage capacity in less space compared to traditional NEMA starters.
- Precise Motor Protection: The ESP200 solid-state relay features a wide 25-100 Amp overload rating and selectable trip classes (5, 10, 20, 30) for customized load protection.
- Field Versatility: A dual-voltage 120V/240V coil makes this unit compatible with multiple control circuit configurations commonly found in industrial sites.
- Reliable Switching: Heavy-duty construction rated for up to 10,000,000 mechanical cycles ensuring long-term operational life in high-cycle environments.
- Advanced Diagnostics: Includes phase loss protection and an overload test feature for simplified troubleshooting and commissioning.
Common Questions about the Siemens 14GUG32AA
What is the maximum horsepower rating for this starter?
The 14GUG32AA is rated for 15 HP at 200V, 20 HP at 230V, and up to 30 HP at 460/575V 3-phase applications.
Does this unit include an enclosure?
No, this is an Open Type Enclosure (NEMA Type 0) designed specifically for mounting inside an existing control panel or motor control center.
Can the overload relay be reset remotely?
While the base unit features an auto/manual reset on the ESP200 relay, it is compatible with Siemens remote reset modules for increased accessibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
