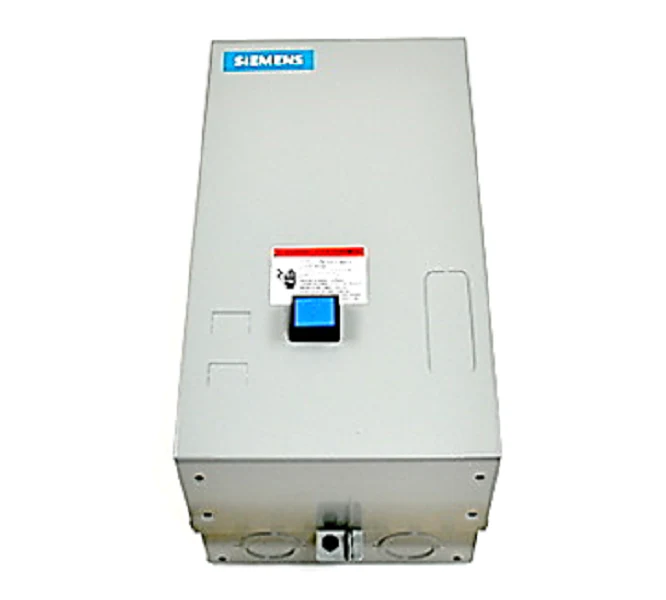

Siemens Industrial Controls 14FUF32BA Starter
The Siemens Heavy Duty Motor Starter, specifically model 14FUF32BA, is a non-reversing, full-voltage solution designed for rigorous industrial motor control. This NEMA Size 2 starter handles a broad 13-52 Amp overload rating, making it a versatile choice for 3-phase systems. Engineered with a dual voltage coil (110-120/220-240Vac), it integrates seamlessly into various control power configurations. The unit features an advanced ESP200 solid-state overload relay, offering superior phase loss protection and phase unbalance detection that standard mechanical overloads lack. Housed in a NEMA 1 general purpose enclosure, this three-phase 3-pole starter is built with a rugged Frame Size B architecture to ensure durability in high-demand HVACR and industrial environments. The auto/manual reset capability provides the flexibility required for both localized maintenance and automated system recovery, ensuring minimal downtime during transient fault conditions.
- Enhanced Motor Protection: The ESP200 solid-state overload provides faster trip times under phase-loss conditions, significantly reducing the risk of motor burnout.
- Broad Application Range: With its 13-52A trip range, this NEMA 2 starter supports motors up to 25 HP at 460V, providing a wide application envelope for contractors.
- Reliable Construction: The heavy-duty motor starter design features silver cadmium contacts and a rugged Frame Size B for millions of operating cycles.
- Simplified Installation: Uses box lug terminals for secure, straight-through wiring, reducing labor time during field installation or retrofit projects.
What is the difference between manual and automatic reset on the 14FUF32BA?
The solid-state overload relay allows for manual reset (requiring physical intervention after a trip) or automatic reset (allowing the relay to reset itself after a cooling period), enabling its use in remote or inaccessible locations.
Can I adjust the trip class on this Siemens NEMA starter?
Yes, the integrated ESP200 overload features selectable trip classes (5, 10, 20, or 30) via DIP switches, allowing you to match the protection curve to specific load types, such as high-inertia fans or standard compressors.
How do I set the specific amperage for my motor?
The 13-52 Amp overload rating is fully adjustable via a front-facing dial. Rotate the adjustment dial to match your motor's full-load amperage (FLA) rating as specified on the nameplate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $989.56
-65%$989.56
$346.35Siemens Industrial Controls 14FUF32BA Starter
The Siemens Heavy Duty Motor Starter, specifically model 14FUF32BA, is a non-reversing, full-voltage solution designed for rigorous industrial motor control. This NEMA Size 2 starter handles a broad 13-52 Amp overload rating, making it a versatile choice for 3-phase systems. Engineered with a dual voltage coil (110-120/220-240Vac), it integrates seamlessly into various control power configurations. The unit features an advanced ESP200 solid-state overload relay, offering superior phase loss protection and phase unbalance detection that standard mechanical overloads lack. Housed in a NEMA 1 general purpose enclosure, this three-phase 3-pole starter is built with a rugged Frame Size B architecture to ensure durability in high-demand HVACR and industrial environments. The auto/manual reset capability provides the flexibility required for both localized maintenance and automated system recovery, ensuring minimal downtime during transient fault conditions.
- Enhanced Motor Protection: The ESP200 solid-state overload provides faster trip times under phase-loss conditions, significantly reducing the risk of motor burnout.
- Broad Application Range: With its 13-52A trip range, this NEMA 2 starter supports motors up to 25 HP at 460V, providing a wide application envelope for contractors.
- Reliable Construction: The heavy-duty motor starter design features silver cadmium contacts and a rugged Frame Size B for millions of operating cycles.
- Simplified Installation: Uses box lug terminals for secure, straight-through wiring, reducing labor time during field installation or retrofit projects.
What is the difference between manual and automatic reset on the 14FUF32BA?
The solid-state overload relay allows for manual reset (requiring physical intervention after a trip) or automatic reset (allowing the relay to reset itself after a cooling period), enabling its use in remote or inaccessible locations.
Can I adjust the trip class on this Siemens NEMA starter?
Yes, the integrated ESP200 overload features selectable trip classes (5, 10, 20, or 30) via DIP switches, allowing you to match the protection curve to specific load types, such as high-inertia fans or standard compressors.
How do I set the specific amperage for my motor?
The 13-52 Amp overload rating is fully adjustable via a front-facing dial. Rotate the adjustment dial to match your motor's full-load amperage (FLA) rating as specified on the nameplate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
