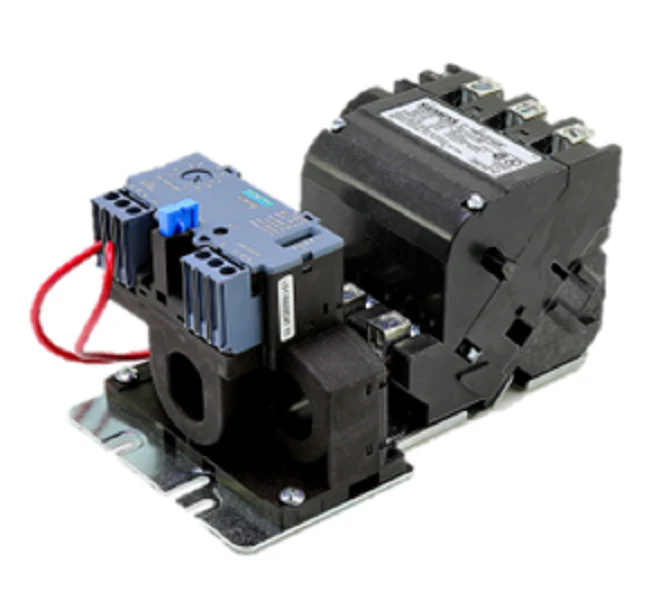

Siemens Industrial Controls 14FUF32AD Starter
The Siemens Industrial Controls 14FUF32AD Starter is a rugged, NEMA Size 2 heavy-duty motor starter engineered for reliable across-the-line starting in demanding industrial environments. This three-phase, 3-pole unit features a 200-208Vac coil voltage and is built on a Frame Size B architecture with an open-type enclosure, making it an ideal candidate for panel mounting in HVACR systems, pump controls, and conveyor line assemblies. At its core is the ESP200 solid-state overload relay, which provides a wide 13-52 Amp overload rating and superior motor protection compared to traditional bimetallic heaters. The integrated electronic sensing detects phase loss and unbalance with high precision, significantly reducing the risk of motor winding failure. With auto/manual reset capabilities and 1NO auxiliary contacts as standard, this heavy-duty motor starter ensures versatile control logic integration and minimal downtime for professional contractors managing critical motor loads up to 10 HP at 200V or 25 HP at 460V.
- Enhanced Motor Protection: The ESP200 solid-state overload offers selectable trip classes (5, 10, 20, or 30) for precise motor protection tailored to specific startup torque requirements.
- Industrial Durability: As a NEMA rated starter, this unit is designed to withstand millions of electrical and mechanical cycles in harsh HVAC motor control applications.
- Streamlined Installation: Features straight-through wiring and an open-type enclosure for efficient field integration into existing control cabinets and industrial electrical systems.
- Operational Flexibility: Includes an auto/manual reset selector and a 13-52A range, eliminating the need for separate heater elements and reducing inventory overhead.
- Reliable Switching: Utilizes silver cadmium contacts and a 208V magnetic coil to ensure positive engagement and reduced contact bounce under heavy three-phase loads.
Common Questions
Does this starter require separate heater elements for overload protection?
No. The Siemens 14FUF32AD utilizes an integrated ESP200 solid-state overload relay. You simply dial in the motor's Full Load Amps (FLA) within the 13-52 Amp range, eliminating the need to purchase or install additional thermal heaters.
Can this unit be used for reversing motor applications?
This specific model is a full voltage non-reversing (FVNR) starter. For applications requiring bi-directional motor control, a reversing-style Siemens Class 22 starter would be required, though many internal components are shared across the NEMA Size 2 family.
What happens if the motor loses a single phase during operation?
The 14FUF32AD provides true phase loss protection through its electronic overload. It is designed to sense the imbalance and trip within 3 seconds, protecting the motor from the rapid overheating associated with single-phasing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
