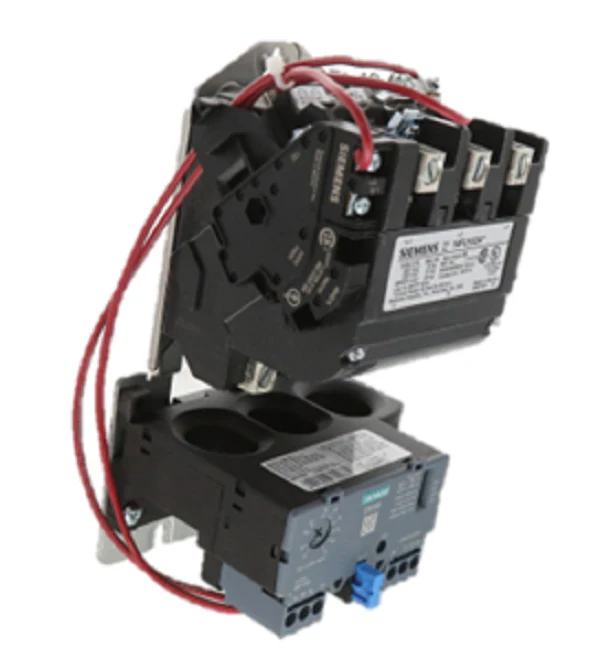

Siemens Industrial Controls 14FUF32AC Starter
The Siemens 14FUF32AC is a heavy-duty, NEMA Size 2 motor starter designed for reliable across-the-line starting of polyphase motors in demanding industrial environments. This three-phase, 3-pole unit is built into a Frame Size B architecture with an open-type enclosure, making it ideal for direct panel integration in HVACR and manufacturing systems. Featuring a versatile dual-voltage 220-240/440-480Vac coil, this Siemens Class 14 starter provides standard-setting performance for motors up to 25 HP at 460V.
To ensure motor longevity and system safety, the 14FUF32AC is equipped with an ESP200 solid-state overload relay. This relay offers an adjustable 13-52 Amp current range and features selectable trip classes (5, 10, 20, or 30) to match specific load profiles. The auto/manual reset functionality, combined with phase-loss and phase-unbalance protection, minimizes downtime and prevents catastrophic motor failure. With a mechanical life rated for 10 million cycles, this magnetic motor starter is a veteran choice for contractors requiring full voltage non-reversing (FVNR) control.
Key Benefits:- Precision Motor Protection: The solid-state overload relay ensures accurate tripping and includes high-accuracy current sensing to protect against phase loss.
- Flexible Coil Configuration: The 240/480V dual voltage coil allows for simplified stocking and field adaptability across different line voltages.
- Industrial Durability: As part of the Class 14 line, this unit features large silver cadmium oxide contacts for superior conductivity and heat dissipation.
- Operational Control: Built-in auto/manual reset settings provide technicians with flexible diagnostic and recovery options after an overload event.
- What is the maximum horsepower rating for this starter? In 3-phase applications, it is rated for 10 HP at 208V, 15 HP at 230V, and 25 HP at 460-600V.
- Does this unit come with an enclosure? No, the 14FUF32AC is an Open Type unit designed for installation within a larger control cabinet or NEMA-rated enclosure.
- Can I adjust the trip class on the solid-state relay? Yes, the integrated ESP200 relay allows for field-selectable trip classes to accommodate various motor start-up times.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
