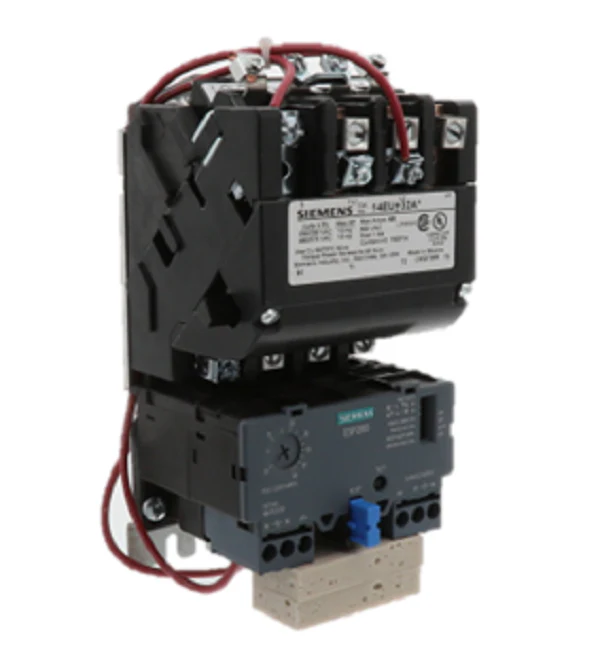

Siemens Industrial Controls 14EUE32AA Starter
The Siemens 14EUE32AA is a heavy-duty, non-reversing motor starter engineered for industrial motor control applications requiring high reliability and precise protection. As a NEMA Size 1 3/4 rated component, this 3-pole magnetic starter bridges the gap between standard sizes to provide a more cost-effective solution for motors up to 10 hp at 460/575V. The unit features an ESP200 solid-state overload relay with an adjustable 10–40A range, ensuring accurate trip response and protecting windings from phase loss and unbalanced loads. Designed for three-phase systems, the dual-voltage coil operates at 110-120/220-240Vac (60Hz), making it adaptable to various control circuit configurations. The open-type enclosure is built for integration into existing panels, utilizing screw-type terminals for secure field wiring and long-term mechanical durability.
Key Benefits of the Siemens 14EUE32AA
- NEMA Size 1 3/4 Efficiency: Optimizes sizing for applications requiring more capacity than a Size 1 without the footprint or cost of a Size 2.
- Advanced Solid-State Protection: The integrated ESP200 relay provides phase loss protection and selectable Class 10, 20, or 30 tripping curves.
- Flexible Reset Modes: Supports manual, automatic, and remote reset options to minimize downtime in automated industrial workflows.
- High Cycling Durability: Rated for up to 10,000,000 mechanical operating cycles, ensuring longevity in high-demand HVAC and manufacturing environments.
- Wide Compatibility: Designed for surface mounting and secondary control circuit integration with standard 120V or 240V sourcing.
Common Questions
What is the purpose of NEMA Size 1 3/4 over standard sizes?
Size 1 3/4 allows contractors to precisely match the starter to the motor's horsepower and amperage (10-40A), offering better protection and cost savings compared to over-sizing to a NEMA Size 2.
Does the 14EUE32AA protect against single-phasing?
Yes, the solid-state overload relay includes phase loss protection, which trips the starter within 3 seconds upon detecting a lost phase to prevent motor burnout.
Can this starter be used with 208V systems?
While the coil is rated for 110-120/220-240V, the power contacts are rated up to 600V, making the physical hardware compatible with 208V 3-phase motors provided the control circuit matches the coil rating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
