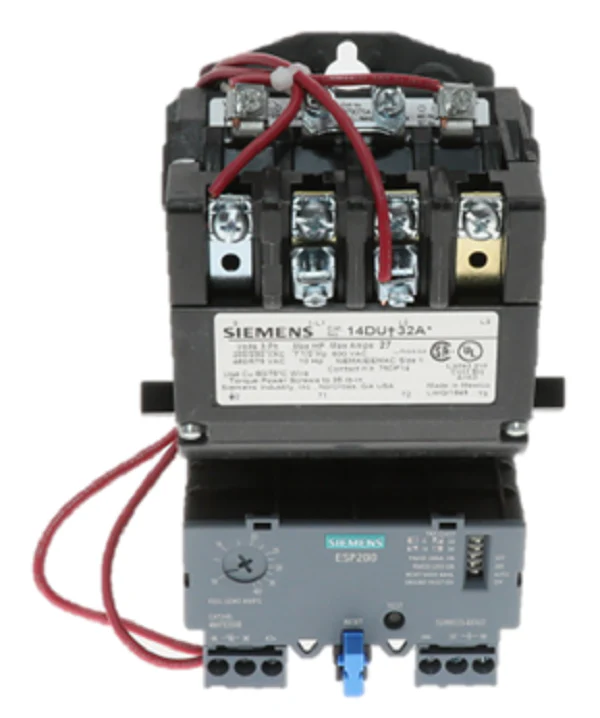

Siemens Industrial Controls 14DUE32AA Starter
The Siemens 14DUE32AA is a rugged NEMA Size 1 heavy duty motor starter engineered for across-the-line starting of polyphase motors in demanding industrial environments. This Class 14 magnetic starter features a three-phase, 3-pole configuration rated for up to 7.5 HP at 230V and 15 HP at 460V. At its core is the ESP200 solid-state overload relay, providing a precise 10-40 Amp current adjustment range. Unlike standard bimetallic heaters, this solid-state overload offers true phase loss protection, tripping within 3 seconds of a phase failure to prevent winding damage. The dual voltage coil is rated for 110-120V/220-240V AC at 60Hz, allowing for flexible field wiring in various control circuits. Built with a vertical surface mounting design and open type enclosure, this unit ensures easy access to silver cadmium contacts and simplifies straight-through wiring for rapid installation.
Key Benefits:
- Precision Motor Protection: The ESP200 solid-state overload provides +/- 1% repeat accuracy, significantly outperforming bimetal alternatives.
- Advanced Phase Monitoring: Integrated phase loss and phase unbalance detection prevent motor overheating and premature insulation failure.
- Field Serviceability: Features DIP switch selectable settings and a choice between automatic and manual reset modes to suit site-specific requirements.
- Reduced Footprint: The NEMA Size 1 frame delivers a high power-to-size ratio, ideal for space-constrained industrial control panels and HVACR equipment.
- Enhanced Durability: Equipped with large silver cadmium contacts designed for high-cycle industrial switching and heavy-duty motor loads.
Common Questions:
Does this starter include phase loss protection?
Yes, the Siemens 14DUE32AA utilizes an ESP200 solid-state relay that provides dedicated phase loss protection, tripping the circuit within 3 seconds to protect the motor from linet-to-line faults.
What is the maximum horsepower rating for this NEMA 1 starter?
This heavy duty motor starter is designed for 3-phase applications, supporting up to 7.5 HP at 230VAC and 15 HP at 460VAC.
How do I adjust the overload settings on the 14DUE32AA?
The overload rating is adjustable via a rotary dial on the face of the relay, allowing for a range of 10 to 40 Amps to match your motor’s full-load amperage (FLA).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
