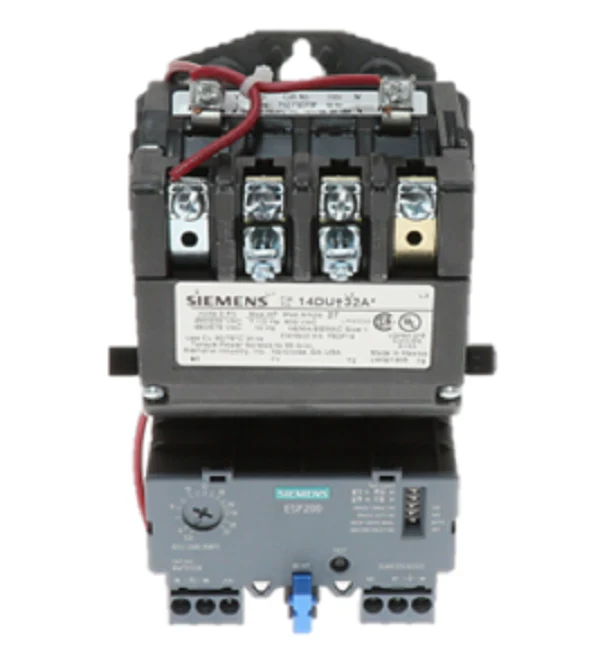

Siemens Industrial Controls 14DUD32AF Starter
The 14DUD32AF is a rugged Siemens Heavy Duty Motor Starter designed for reliable across-the-line starting of three-phase motors. Specifically engineered for industrial environments, this NEMA Size 1 starter operates on a 120Vac coil voltage (compatible with 110V 50Hz and 120V 60Hz control circuits). It features a 3-pole configuration and comes in a compact Frame Size A1 with an open type enclosure, making it an ideal choice for mounting within custom control panels on machine tools, compressors, or material handling systems.
A primary technical advantage of this unit is the integrated ESP200 solid state overload relay, which offers a versatile 5.5-22 Amp overload rating. This selectable range allows for precise motor protection across a spectrum of horsepower ratings, supporting up to 10 HP at 460/575V or 3 HP at 200/230V. The relay includes auto/manual reset capabilities and specialized phase-loss protection to safeguard inductive loads against unbalanced voltages. The 45-degree wedge action contacts and gravity dropout mechanism ensure consistent mechanical performance over a service life of up to 10 million cycles.
Key Benefits- Enhanced Precision: The ESP200 solid state overload provides more accurate protection than traditional bimetallic heaters, reducing nuisance trips.
- Internal Flexibility: A wide 4:1 adjustment range (5.5A to 22A) means you can calibrate the starter to the specific FLA of your motor without swapping components.
- Field Reliability: Features large silver cadmium oxide contacts and a molded coil for superior heat dissipation and arc quenching.
- Installation Efficiency: Designed with straight-through wiring and easy access to coil terminals to minimize labor time in the field.
- Does this starter require separate heater elements? No, this unit uses a solid state overload relay with a dial-adjustable current setting, eliminating the need for purchasing or installing individual heaters.
- Can I convert the reset mode to remote? Yes, the ESP200 relay supports manual, automatic, and remote reset modes to suit your specific safety and control protocols.
- Is this suitable for outdoor use? As an open type enclosure, it is designed for panel mounting; for outdoor applications, it must be installed within a NEMA 3R or 4 rated cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
