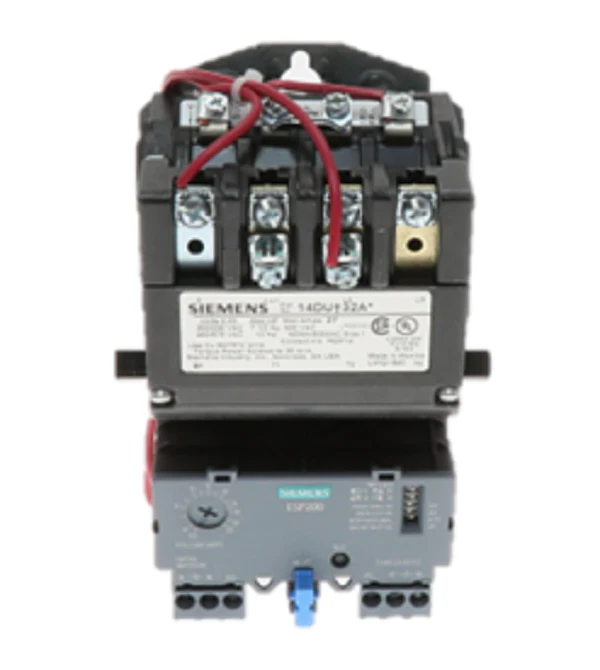

Siemens Industrial Controls 14DUD32AA Starter
As a veteran contractor, you know that reliability in the field starts with the right iron. The Siemens 14DUD32AA Starter is a NEMA Size 1 motor starter engineered for the most demanding heavy-duty industrial applications. This non-reversing magnetic starter comes in an open enclosure with a compact A1 frame size, making it a versatile choice for control panels where space is at a premium. It features a dual-rated 110-120/220-240Vac coil voltage suitable for 60Hz systems and is built to handle three-phase motors up to 10 HP at 460V.
The standout feature of the 14DUD32AA is the integrated ESP200 solid-state overload relay. Unlike traditional bimetallic heaters, this relay provides a precise 5.5-22 Amp overload rating with a 4:1 adjustment range, significantly reducing your inventory needs. It offers superior protection with true phase loss protection and a selectable auto/man reset. The large silver cadmium contacts ensure long-cycle life and consistent conductivity, even under high-inrush starting conditions. Whether you are running HVAC fans or industrial compressors, this Siemens Class 14 starter delivers the rugged performance required to minimize downtime and protect your equipment.
- Phase Loss Protection: Trips within 3 seconds upon phase loss to prevent motor burnout and expensive rewinds.
- ESP200 Technology: Features a wide 5.5 to 22A adjustable range, eliminating the need for various heater elements.
- Rugged Design: Equipped with industrial-grade silver cadmium contacts for high durability and gravity dropout for safety.
- Flexible Reset: Field-selectable manual or automatic reset allows for tailored control based on technical requirements.
- Simple Installation: Straight-through wiring and easy coil access streamline initial mounting and future maintenance.
Common Questions
What is the maximum horsepower rating for this starter?
The Siemens 14DUD32AA is rated for 3 HP at 230V and 10 HP at 460/575V for three-phase systems.
Can I use this starter for a single-phase application?
While designed for three-phase loads, this Class 14 starter can be used for single-phase motors if wired according to the manufacturer's specific series-wiring guidelines for the overload relay.
What are the benefits of the solid-state overload over bimetallic heaters?
Solid-state relays provide more accurate tripping curves, built-in phase loss protection, and do not require external heaters, which simplifies the selection process and improves overall motor longevity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
