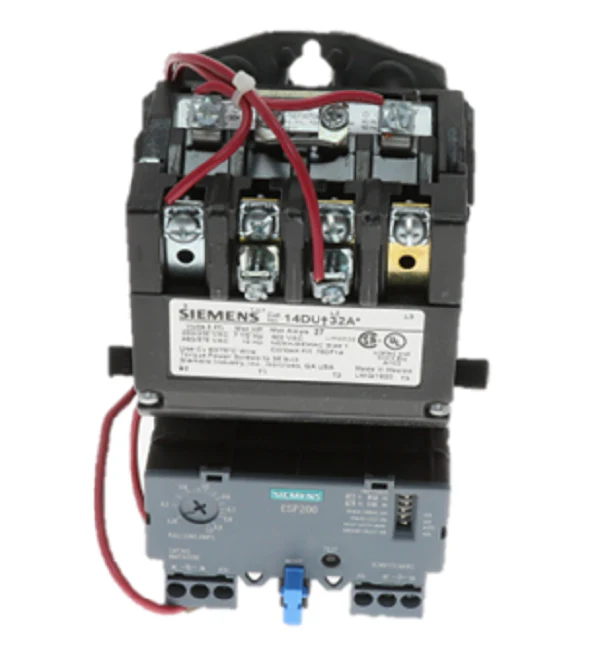

Siemens Industrial Controls 14DUA32AA Starter
The Siemens Industrial Controls 14DUA32AA Starter is a heavy duty motor starter engineered for rigorous across-the-line starting of three phase polyphase motors. As a NEMA Size 1 component, this Class 14 magnetic starter features a rugged industrial design that excels in demanding HVACR and industrial environments. It is equipped with a versatile dual voltage coil (110-120/220-240Vac Coil Voltage), allowing for flexible control circuit integration without the immediate need for auxiliary transformers in many standard contractor setups.
For motor protection, this unit utilizes an ESP200 solid state overload relay with an adjustable 0.25-1 Amp overload rating. This 3 pole, open type enclosure starter provides high-accuracy phase loss protection and ambient temperature compensation, ensuring reliable performance regardless of local panel conditions. The integrated solid state overload with auto/manual reset functionality offers technicians field-selectable control to match specific application requirements, while the Frame Size A footprint simplifies installation in tight enclosures.
Key Benefits- Precision Motor Protection: The ESP200 solid state overload offers accurate 0.25-1 Amp trip settings, protecting small motors from phase imbalance and overcurrent.
- Field-Selectable Reset: Supports both auto and manual reset modes to suit unattended or safety-critical machinery.
- Flexible Control Power: The dual-rated 110-120/220-240Vac coil is designed to handle common industrial control voltages with a high tolerance for voltage fluctuations.
- Industrial Durability: Built as a heavy duty motor starter, it features large silver cadmium contacts and a NEMA Size 1 rating for millions of mechanical operations.
What is the trip class for this starter?
The Siemens 14DUA32AA features a Class 14 design, and its solid state overload can typically be configured for Class 5, 10, 20, or 30 trip curves to match motor start-up characteristics.
Can I use this for single-phase motors?
While designed as a three phase starter, it can be adapted for single-phase use by wiring the load through the poles in series to ensure the overload relay senses balanced current across all three legs.
Is an enclosure included?
No, this specific part number is an open type starter meant for mounting inside a larger NEMA rated electrical cabinet or motor control center.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
