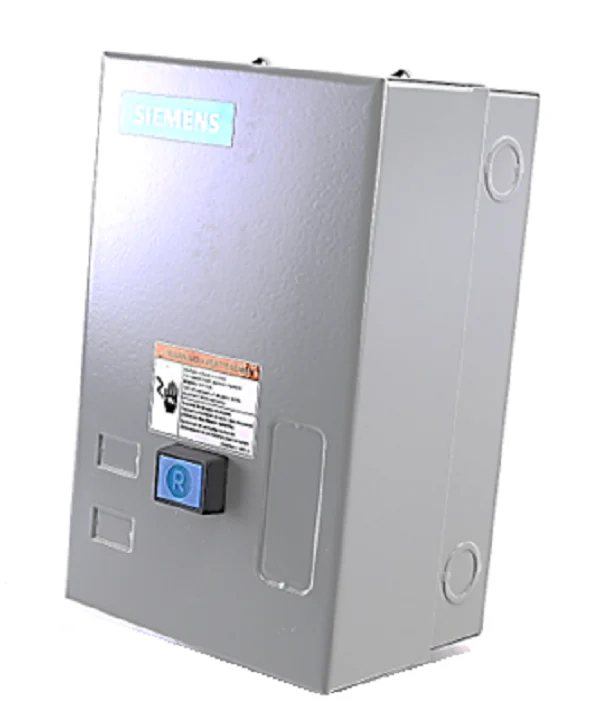

Siemens Industrial Controls 14CUD32BA Starter
The Siemens 14CUD32BA Heavy Duty Motor Starter is a NEMA Size 0 across-the-line control solution designed for rigorous industrial HVACR and motor control applications. This three-phase, 3-pole non-reversing starter is housed in a NEMA 1 General Purpose Enclosure, providing reliable indoor protection for critical electrical infrastructure. It features a versatile 110-120/220-240Vac dual voltage coil, allowing for seamless integration into various power configurations without the need for additional transformers in many setups.
For motor protection, the unit is equipped with a high-precision solid-state overload relay featuring an adjustable 5.5-22 Amp overload rating. This ESP200 technology ensures phase loss protection and repeatable accuracy, significantly reducing the risk of motor burnout compared to traditional bimetallic heaters. The A1 frame size design incorporates straight-through wiring and gravity dropout mechanics for simplified installation and consistent mechanical performance. Contractors can switch between auto and manual reset modes to suit specific operational requirements, ensuring minimal downtime in heavy-duty commercial environments.
Key Benefits
- Precision Motor Protection: The integrated ESP200 solid-state overload provides a wide 5.5-22A adjustment range with phase failure protection.
- Industrial Durability: Rugged NEMA 0 construction with silver cadmium oxide contacts designed for millions of switching cycles.
- Flexible Installation: Features straight-through wiring and a NEMA 1 enclosure for efficient mounting in standard indoor environments.
- Dual Voltage Coil: Supports 110-120/220-240V configurations at 60Hz, reducing inventory requirements for service contractors.
- Field Serviceability: Includes auto/manual reset functionality and easy access to the magnetic coil for rapid maintenance.
Common Questions
How do I adjust the amperage setting on the Siemens 14CUD32BA?The solid-state overload relay features a visible dial on the face of the starter. Use a screwdriver to align the arrow with the Full Load Amps (FLA) listed on your motor’s nameplate within the 5.5 to 22 Amp range.
Can this 14CUD32BA starter be used for single-phase motors?While this is a 3-pole, 3-phase starter, it can be wired for single-phase applications by looping the power through the poles to ensure the overload relay senses balanced current, though it is primarily optimized for three-phase performance.
What is the maximum horsepower rating for this NEMA Size 0 starter?This unit is typically rated for up to 3 HP at 230V and up to 5 HP at 460V/575V, depending on the specific motor efficiency and load characteristics.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
