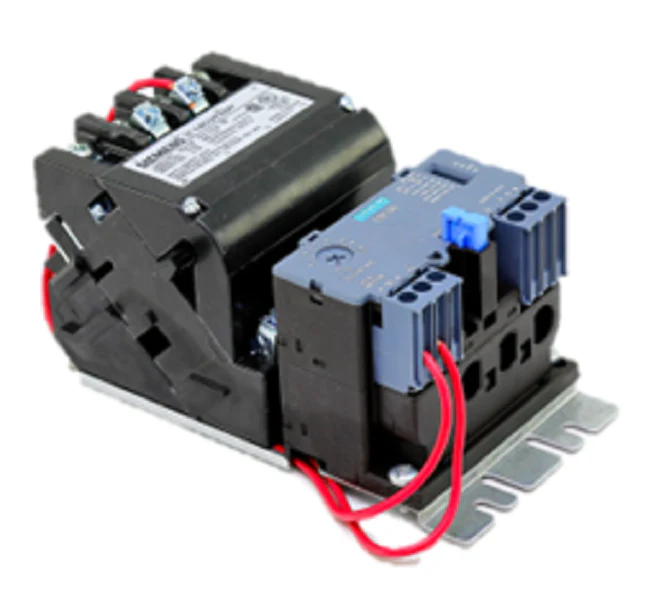

Siemens Industrial Controls 14CUD32AD Starter
The Siemens 14CUD32AD Motor Starter is a heavy-duty NEMA Size 0 solution designed for professional HVACR and industrial motor control applications. This Full Voltage Non-Reversing (FVNR) starter features a robust 3-pole configuration rated for three-phase systems and is factory-equipped with a 208V AC coil. Built on the Siemens Class 14 platform, this unit utilizes Frame Size A1 with an open-type enclosure, making it ideal for integration into larger control panels where space and thermal management are critical considerations.
For precise motor protection, the 14CUD32AD includes a solid-state overload relay with a wide adjustable range of 5.5 to 22 Amps. This heaterless design eliminates the need for separate thermal units, reducing inventory overhead and installation time. Technical features include selectable trip classes (5, 10, 20, or 30) to facilitate optimal protection for standard or high-inertia loads. The ESP200 technology provides ambient insensitivity and superior repeat accuracy, ensuring reliable performance across varying environmental conditions. Field-ready features such as auto/manual reset, a visible trip indicator, and standard 1NO auxiliary contacts allow for seamless integration with 3-wire pilot control and PLC monitoring systems.
- Precision Motor Protection: The heaterless ESP200 solid-state overload provides a 4:1 adjustment range, reducing nuisance trips and protecting high-efficiency motors.
- Industrial Durability: Rated for a mechanical durability of up to 10 million cycles, ensuring long-term reliability in demanding NEMA Magnetic Motor Starter applications.
- Flexible Control Options: Supports both manual and automatic reset modes with a 3-minute cool-down period for motor overload protection.
- Simplified Installation: Features straight-through wiring and screw-type terminals, significantly reducing the labor involved in industrial motor control field wiring.
Common Questions
Does this starter require separate heater elements for the overload relay?
No, the Siemens 14CUD32AD uses an integrated electronic solid-state overload relay. It does not require the purchase or installation of separate thermal heaters.
Can I use this starter for single-phase motor applications?
While designed for three-phase motors, solid-state models like the 14CUD32AD can often be wired for single-phase by looping the leads through the sensing poles; however, always verify with your specific application requirements for proper phase-loss detection behavior.
Is the coil voltage compatible with 120V or 240V control circuits?
This specific model is configured with a 200-208V AC coil. If your control circuit uses 120V or 480V, a different coil or a control power transformer would be required for proper operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
