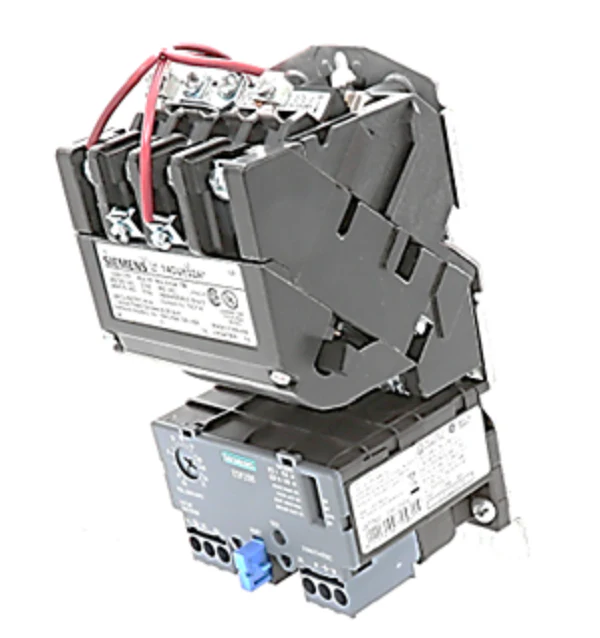

Siemens Industrial Controls 14CUD32AA Starter
The Siemens Heavy Duty Motor Starter, specifically model 14CUD32AA, is a NEMA Size 0 across-the-line non-reversing starter engineered for reliable performance in demanding industrial and HVACR environments. This three-phase, 3-pole unit features a dual-voltage coil rated for 110-120/220-240Vac at 60Hz, providing the versatility needed for various field configurations. For precise motor protection, it is equipped with a solid-state overload relay (ESP200) that offers an adjustable amp range of 5.5 to 22 Amps. The Class 14 motor starter design ensures high durability with silver-cadmium oxide contacts and is housed in an open-type enclosure, making it ideal for integration into custom control panels or machine cabinets. Featuring both auto and manual reset options, this starter provides technicians with flexible fault management and advanced protection against phase loss and motor burnout.
- Precise Current Adjustment: The solid-state overload relay allows for fine-tuned settings between 5.5 and 22 Amps to match specific motor nameplate data accurately.
- Dual-Voltage Versatility: The 110-120/220-240Vac coil simplifies inventory management by supporting multiple control circuit voltages in one Frame Size A1 unit.
- Industrial Durability: Built for heavy-duty motor applications, including compressors and air handling units, with a 600V maximum rating.
- Flexible Fault Recovery: The auto/manual reset functionality allows for tailored system responses to trip events, minimizing downtime in critical HVACR systems.
Common Questions
What is the maximum horsepower rating for the Siemens 14CUD32AA?
This NEMA Size 0 starter is typically rated for up to 3 HP at 230V and 5 HP at 460/575V for three-phase applications.
Does this starter include an auxiliary contact?
Yes, the 14CUD32AA normally comes standard with one normally open (1NO) auxiliary contact for holding circuits or remote signaling.
Can the solid-state overload relay detect phase loss?
Yes, the integrated ESP200 solid-state overload provides phase loss protection, tripping the starter quickly to prevent motor damage during a single-phasing event.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Industrial Controls 14CUD32AA Starter
The Siemens Heavy Duty Motor Starter, specifically model 14CUD32AA, is a NEMA Size 0 across-the-line non-reversing starter engineered for reliable performance in demanding industrial and HVACR environments. This three-phase, 3-pole unit features a dual-voltage coil rated for 110-120/220-240Vac at 60Hz, providing the versatility needed for various field configurations. For precise motor protection, it is equipped with a solid-state overload relay (ESP200) that offers an adjustable amp range of 5.5 to 22 Amps. The Class 14 motor starter design ensures high durability with silver-cadmium oxide contacts and is housed in an open-type enclosure, making it ideal for integration into custom control panels or machine cabinets. Featuring both auto and manual reset options, this starter provides technicians with flexible fault management and advanced protection against phase loss and motor burnout.
- Precise Current Adjustment: The solid-state overload relay allows for fine-tuned settings between 5.5 and 22 Amps to match specific motor nameplate data accurately.
- Dual-Voltage Versatility: The 110-120/220-240Vac coil simplifies inventory management by supporting multiple control circuit voltages in one Frame Size A1 unit.
- Industrial Durability: Built for heavy-duty motor applications, including compressors and air handling units, with a 600V maximum rating.
- Flexible Fault Recovery: The auto/manual reset functionality allows for tailored system responses to trip events, minimizing downtime in critical HVACR systems.
Common Questions
What is the maximum horsepower rating for the Siemens 14CUD32AA?
This NEMA Size 0 starter is typically rated for up to 3 HP at 230V and 5 HP at 460/575V for three-phase applications.
Does this starter include an auxiliary contact?
Yes, the 14CUD32AA normally comes standard with one normally open (1NO) auxiliary contact for holding circuits or remote signaling.
Can the solid-state overload relay detect phase loss?
Yes, the integrated ESP200 solid-state overload provides phase loss protection, tripping the starter quickly to prevent motor damage during a single-phasing event.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
