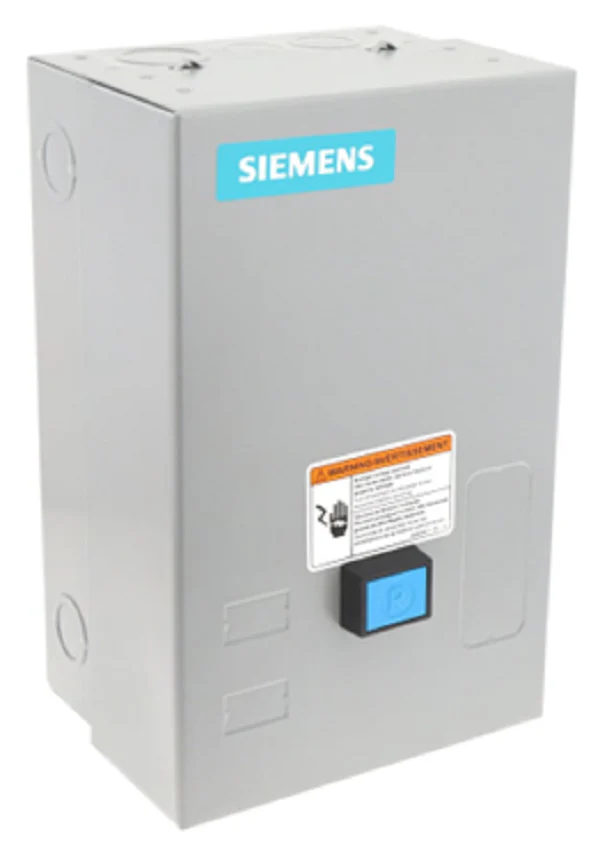

Siemens Industrial Controls 14CUC32BJ Starter
The Siemens 14CUC32BJ is a heavy-duty NEMA Size 0 motor starter engineered for across-the-line starting of polyphase motors in professional HVACR and industrial control environments. This non-reversing magnetic starter features a sophisticated solid-state overload relay with an adjustable 3–12A full load current (FLA) range, ensuring precise protection for three-phase motors utilized in high-demand pumps, fans, and compressors. Designed for seamless integration into standard HVAC control circuits, the unit utilizes a 24VAC control coil (60Hz) and comes housed in a rugged NEMA 1 general purpose enclosure for reliable indoor protection.
Built to withstand intense cycling, this Siemens Class 14 starter offers a mechanical durability of up to 10 million cycles. The straight-through wiring design and screw terminal connections facilitate efficient installation for field technicians managing motor control center upgrades or replacements. With gravity drop-out functionality and large silver cadmium contacts, this starter maintains consistent conductivity and safety. It is a preferred choice for mechanical contractors requiring a dependable 600V AC max voltage starter that meets UL and CSA standards for commercial air handling and process cooling applications.
Key Benefits:- Adjustable 3–12A FLA Range: Integrated solid-state overload relay allows for precise amperage tuning to match specific motor nameplate data.
- 24VAC Control Voltage: Native compatibility with standard low-voltage HVAC control panels and 24-volt transformer outputs.
- NEMA Size 0 Ruggedness: Heavy-duty industrial construction provides superior durability compared to lighter IEC-rated components.
- Non-Reversing 3-Pole Design: Optimized for standard motor operation in fan systems, pumps, and refrigeration compressors.
- Manual/Auto Reset: Versatile overload relay configuration offers flexibility for automated system recovery or manual intervention after a fault.
What is the maximum voltage rating for the 14CUC32BJ?
This starter is rated for a maximum load voltage of 600V AC, making it suitable for standard 208V, 230V, and 460V three-phase applications.
Does this unit require separate heater elements for the overload?
No, this model features a solid-state overload relay, eliminating the need for traditional thermal heaters while providing a wide adjustable trip range.
Can I add auxiliary contacts to this Siemens motor starter?
Yes, the Class 14 Size 0 starters are designed to accept a variety of side-mount auxiliary contact blocks for signaling and interlocking needs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
