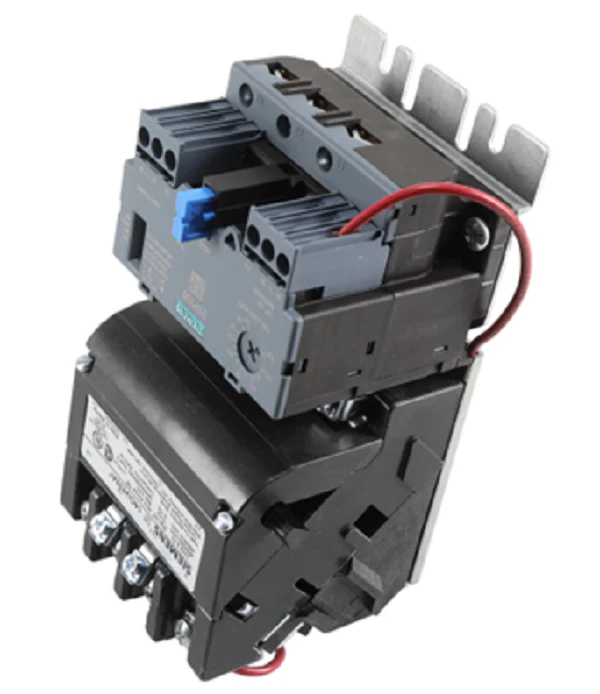

Siemens Industrial Controls 14CUA32AF Starter
The Siemens Industrial Controls 14CUA32AF is a heavy-duty NEMA Size 0 magnetic motor starter designed for high-reliability motor control in demanding HVACR and industrial environments. This non-reversing motor starter features 3-pole architecture and is rated for three-phase motors with an exceptionally precise current range of 0.25 to 1.0 Amps. Engineered for full voltage across-the-line starting, it utilizes a 120V AC coil (60Hz) to ensure consistent contactor engagement. The core advantage of the 14CUA32AF is the integrated ESP200 solid-state overload relay, which provides superior phase loss protection and adjustable trip settings compared to traditional thermal heaters. This unit is an open-style starter, intended for mounting within a larger control panel or custom enclosure where space-saving and technical modularity are paramount.
Key Benefits for Technicians:
- Precise Motor Protection: The solid-state overload relay (0.25-1A) eliminates the need for separate heaters and offers highly accurate protection for fractional horsepower motors.
- Industrial Durability: Built as a NEMA Size 0 component, it is designed for millions of cycles in harsh electrical environments.
- Flexible Installation: The open enclosure design with screw terminals facilitates straightforward integration into existing motor control centers.
- Contactor Reliability: The 120V coil provides stable operation and compatibility with standard control circuits.
- Phase Loss Sensitivity: Advanced circuitry detects phase imbalances quickly, preventing motor burnout in unbalanced power conditions.
Common Questions & Technical Insights:
Does this starter require separate heater elements?
No, the Siemens 14CUA32AF uses an integrated ESP200 solid-state overload. You can dial in the specific Full Load Amps (FLA) within the 0.25-1A range via the onboard potentiometer.
Can I use this for a single-phase motor?
While designed as a 3-phase magnetic starter, it can be wired for single-phase applications by looping the current through the poles to ensure the overload relay correctly senses the current draw across all phases.
What is the maximum voltage rating for the power contacts?
The power contacts on this Siemens motor starter are rated for up to 600VAC, making it suitable for 208V, 230V, and 480V systems, provided the control coil is supplied with 120V.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
