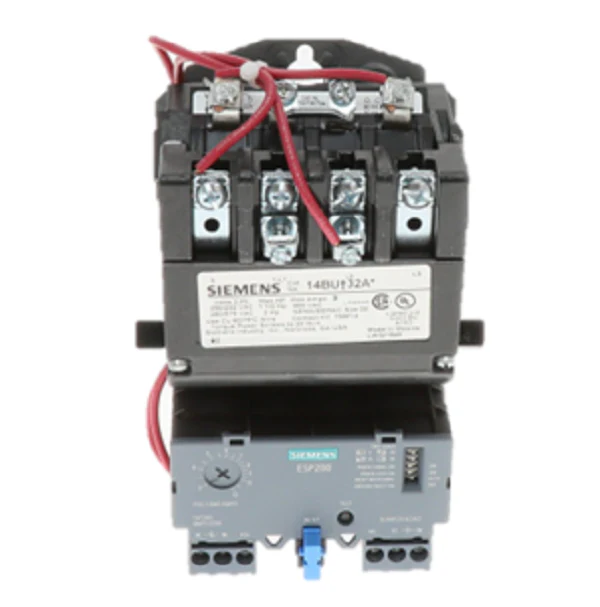

Siemens Industrial Controls 14BUC32AA Starter
The Siemens Industrial Controls 14BUC32AA Starter is a rugged, NEMA Size 00 motor starter designed for full-voltage across-the-line starting in heavy-duty industrial and HVACR environments. This three phase 3 pole starter features a dual-rated 110-120/220-240Vac coil and an integrated solid state overload relay with an adjustable 3-12 Amp range. Built on the Siemens Class 14 platform, this heavy duty motor starter utilizes a Frame Size A1 open-type configuration, making it ideal for direct panel integration where space and reliability are critical. The solid-state protection provides superior accuracy compared to traditional bimetallic heaters, offering rapid trip response under phase loss conditions and allowing for a selectable auto or manual reset to minimize downtime on the job site.
Key Benefits
- Precise Motor Protection: The 3-12 Amp overload rating is adjustable to match specific motor nameplate data, ensuring high-accuracy thermal protection.
- Dual Voltage Versatility: Equipped with a multi-tap coil for 110-120/220-240Vac supply, simplifying inventory for varied field requirements.
- Advanced Diagnostics: The built-in solid state overload detects phase failure in under 3 seconds, significantly reducing the risk of motor winding damage.
- Industrial Durability: NEMA Size 00 rated for 2 HP at 460V, featuring large silver cadmium contacts for extended switching life in high-cycling applications.
- Flexible Mounting: The A1 frame open enclosure design facilitates easy wiring and fits into standard control enclosures with minimal footprint.
Common Questions
What is the maximum horsepower rating for this Siemens Size 00 starter?
This starter is rated for up to 1.5 HP at 230V and 2 HP at 460V/575V for three-phase motor applications.
Does the 14BUC32AA include auxiliary contacts?
Yes, it typically comes standard with one normally open (NO) auxiliary holding interlock for use in three-wire control circuits.
Can I use this starter for single-phase motors?
While designed for three-phase systems, Siemens Class 14 starters can be wired for single-phase applications by looping the power through all three poles to ensure the overload relay senses balanced current.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
