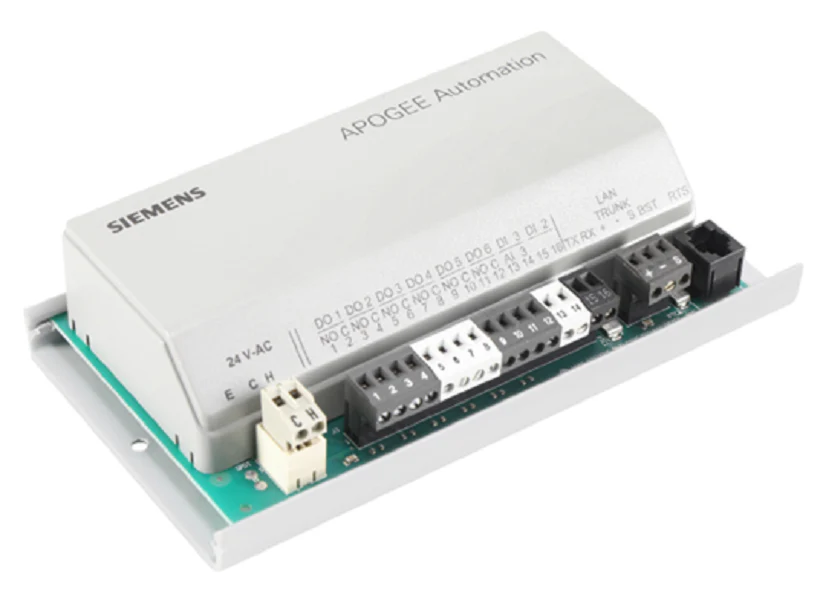

Siemens DDC 540-104-R Control
The Siemens DDC 540-104-R Control is a ruggedized Terminal Equipment Controller (TEC) designed specifically for constant volume (CV) ventilation systems in demanding commercial and industrial environments. This refurbished constant volume controller arrives pre-loaded with application-specific algorithms to handle cooling only, hot water reheat, or multi-stage electric reheat sequences. Engineered for Direct Digital Control (DDC), the 540-104-R ensures stable room pressure and temperature regulation using an advanced PID loop that minimizes unnecessary airflow setpoint hunting. Its integrated differential pressure sensor provides precise measurement of air velocity, reporting flow in CFM to maintain environmental setpoints even in low duct static pressure conditions.
For facility managers and technicians, the Siemens 540-104-R features non-volatile EEPROM memory, ensuring all HVAC control parameters and setpoints are preserved during power cycles without the need for battery backup. This specific model includes the Autozero Module, which allows for periodic recalibration of the velocity transducer without interrupting airflow, critical for 100% occupancy applications. The unit connects seamlessly to the Siemens APOGEE Floor Level Network (FLN) via a 3-wire trunk, providing technicians with the ability to monitor, troubleshoot, and modify terminal unit performance remotely or through the local RJ-11 room sensor port.
Key Benefits for Technicians:
- Precise Airflow Management: Utilizes Direct Digital Control technology for pressure independent performance in constant air volume applications.
- Autozero Module Integration: Enables automatic sensor recalibration, ensuring long-term measurement accuracy without manual intervention.
- Streamlined Installation: Designed for replacement or field installation with removable terminal blocks and standard DIN rail or track mounting.
- Building Automation Compatibility: Fully compatible with Siemens APOGEE FLN systems for centralized energy management and diagnostics.
- Durable Refurbished Quality: Meticulously tested to meet HVAC terminal unit controller performance standards in medical, educational, and commercial facilities.
Common Questions Regarding the 540-104-R:
Does this controller require a battery for program storage?
No. All control parameters, addresses, and airflow setpoints are stored in EEPROM memory, which protects your database against power failures without requiring maintenance of an internal battery.
What applications are pre-programmed into the 540-104-R?
This Siemens TEC typicality supports Application 2030 (Cooling Only), 2032 (Electric Reheat), and 2033 (Hot Water Reheat), making it versatile for various terminal box configurations.
How do I calibrate the airflow sensor?
The included Autozero Module handles recalibration automatically. For initial commissioning, airflow setpoints can be adjusted in CFM via the Siemens MMI port or a networked field panel.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
