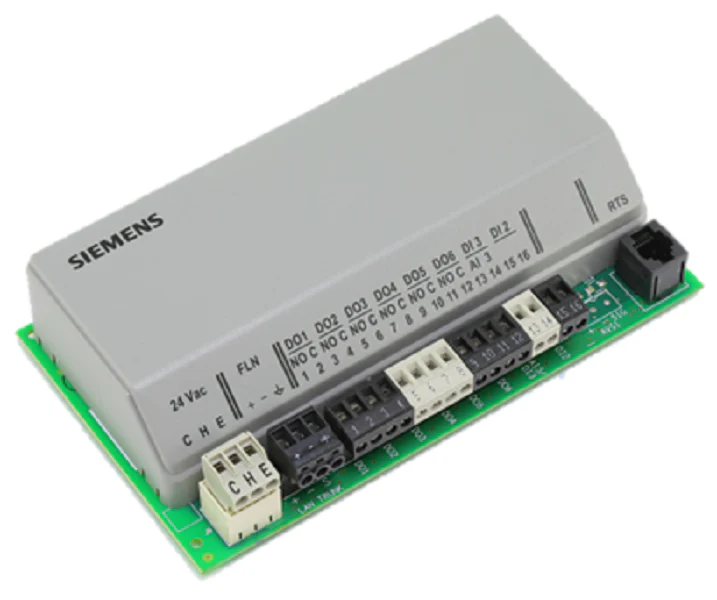

Siemens DDC 540-100N Control
The Siemens 540-100N is a high-performance Terminal Box Controller designed for precise pressure-independent Variable Air Volume (VAV) system management. Operating on a Direct Digital Control (DDC) architecture, this unit provides HVAC professionals with advanced control over zone-level routines, including VAV cooling, heating, and fan-powered applications. It features six solid-state digital outputs rated for 24 VAC at 0.5 A per channel, ensuring reliable commutation for damper actuators and staging modules. Integrated PID algorithms minimize hunting and temperature fluctuations by stabilizing airflow setpoints during demand cycles. This controller communicates via the APOGEE P1 Field Level Network (FLN) and includes an EEPROM for non-volatile data storage, eliminating the need for battery backups. Its 1/8 load circuit rating and compatibility with autozero modules make it an essential component for contractors maintaining complex Siemens building automation infrastructures.
Key Benefits
- System Integration: Fully compatible with APOGEE P1 networks for seamless communication with field panels.
- Precision Control: Advanced PID algorithms ensure stable room temperatures and accurate airflow setpoints.
- Simplified Installation: Features RJ-11 ports for quick room sensor connections and removable terminal blocks for power and I/O.
- Flexible Applications: Pre-programmed with multiple HVAC application sequences including cooling, hot water reheat, and electric reheat.
- Data Integrity: EEPROM memory preserves all field parameters and custom configuration settings during power interruptions.
Common Questions
How do I verify the controller is communicating on the FLN?
The TX and RX LEDs on the board indicate active DDC communication. To confirm basic hardware health, look for the 'Basic Sanity Test' (BST) LED flashing once per second.
Does this unit support pressure-independent VAV operation?
Yes, the 540-100N is specifically designed for pressure-independent routines and includes an onboard airflow transducer for measuring differential pressure.
Can I use this for fan-powered terminal boxes?
This controller supports various pre-set sequences, including application codes for series and parallel fan configurations with auxiliary heating stages.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
