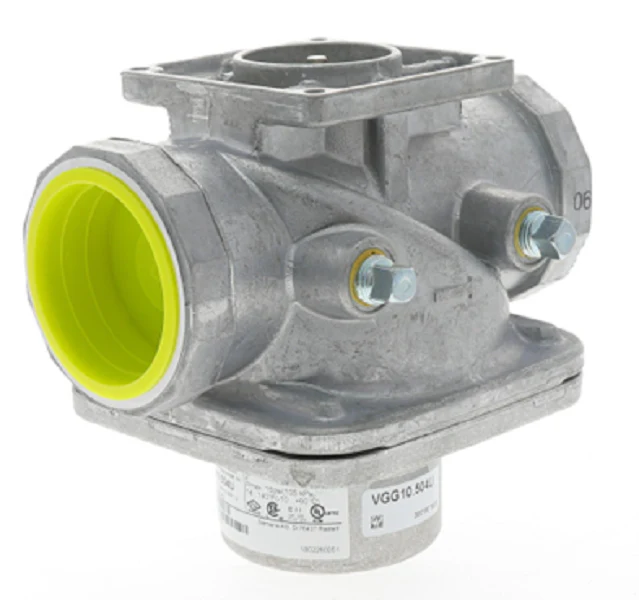

Siemens Combustion VGG10.504U Gas Valve
The Siemens Combustion VGG10.504U Gas Valve is a robust, single-body 2-inch NPT gas valve engineered specifically for technical demand in commercial and industrial burner systems. This normally closed gas valve is constructed from high-grade die-cast aluminum, capable of handling a maximum operating pressure of 15 psi (600 mbar) with a significant natural gas capacity of 3,511 CFH at 1" W.C. pressure drop. Designed for seamless modularity, this safety shut-off valve functions as a central component in an optimized gas train when paired with Siemens SKP series electro-hydraulic actuators, including the SKP15, SKP25, SKP55, and SKP75 models.
For technicians and contractors, the VGG10.504U offers superior reliability via its dual stem guides, which ensure precise disc alignment and gas-tight shut-off. An integrated stainless steel mesh inlet filter (0.9 mm) protects the valve seat and sensitive downstream components from pipe scale and debris. This industrial combustion gas valve also features four 1/4" NPT pressure taps (two inlet, two outlet), facilitating accurate diagnostic testing and pressure monitoring without breaking the line.
Key Benefits
- Universal Actuator Compatibility: Designed to interface directly with any Siemens SKP actuator, allowing for safety shut-off, constant pressure regulation, or air-gas ratio control.
- High Flow Performance: The contoured valve disc provides smooth gas release and stable regulating control, minimizing hunting in low-fire ranges.
- Rugged Durability: Die-cast aluminum body and stainless steel filtration extend component life in demanding boiler room environments.
- Simplified Installation: The modular design reduces the overall footprint and weight of the gas train, requiring fewer fittings.
Common Questions
Is the actuator included with the VGG10.504U?
No, this is a separate valve body. You must specify the appropriate SKP series actuator based on your required control function (e.g., SKP15 for simple ON/OFF or SKP25 for pressure regulation).
Can this valve be mounted in any orientation?
The valve should be installed with the actuator in the upright or horizontal position. Refer to the specific SKP mounting instructions to ensure proper housing drainage and internal component alignment.
What is the purpose of the 1/4" NPT ports?
These serve as pressure test points for monitoring inlet supply pressure and downstream manifold pressure during commissioning and combustion analysis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
